Author Re-building block. What root does the oil breather pipe take?
Scotty C
Member
Registered: 6th Nov 05
Location: Kidderminster Drives: 1.6 16v Sport
User status: Offline
1st Mar 07 at 16:15   View User's Profile U2U Member Reply With Quote
The two off the rocker cover!
Superlite Ltd.
Member
Registered: 9th Jan 07
User status: Offline
1st Mar 07 at 16:26   View User's Profile U2U Member Reply With Quote
ahhhh on the right hand side. I know what you mean. Isnt one a metal pipe?
Scotty C
Member
Registered: 6th Nov 05
Location: Kidderminster Drives: 1.6 16v Sport
User status: Offline
1st Mar 07 at 16:30   View User's Profile U2U Member Reply With Quote
Nope, both rubber. Can't figure out why if that breather is blocked it'll cause oil to go into the cumbustion chamber and chuck it out the exhaust
Superlite Ltd.
Member
Registered: 9th Jan 07
User status: Offline
1st Mar 07 at 16:37   View User's Profile U2U Member Reply With Quote


On the right? There is 2 pointing down. My front one is rubber then a metal pipe.
mattievRS
Member
Registered: 20th May 06
Location: Leicester
User status: Offline
1st Mar 07 at 17:18   View User's Profile U2U Member Reply With Quote
i think the breather hose goes around the back and connects to an outlet pipe on the bottom end just below the lower inlet.
Dave A
USER UNDER INVESTIGATION - DO NOT TRADE

Registered: 10th Dec 03
Location: County Durham
User status: Offline
1st Mar 07 at 18:08   View User's Profile U2U Member Reply With Quote

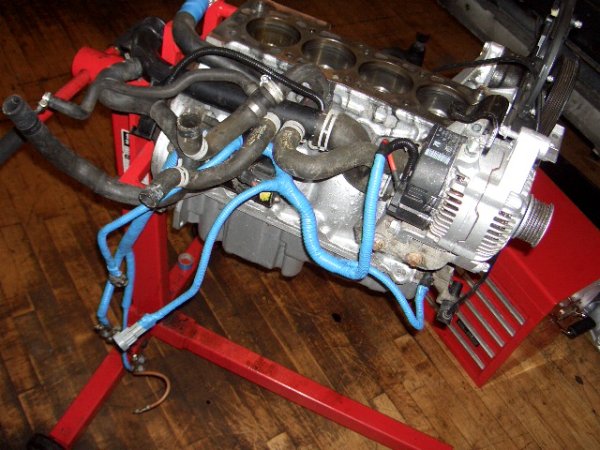

you can see it on this pic (just)



goes under the coilpack and round into a fitting on the back of the block / crankcase.

the reason you would get oil burning if this pipe is blocked is as the pistons travel up and down the create a pressure known as crankcase pressure, think of the crankcase as a sealed box, if this pressure cant get out from the breather its got to go somewhere so it gets past the piston rings, taking oil mist with it.
Superlite Ltd.
Member
Registered: 9th Jan 07
User status: Offline
1st Mar 07 at 18:12   View User's Profile U2U Member Reply With Quote
Thanks for the photo Dave, well explained
Scotty C
Member
Registered: 6th Nov 05
Location: Kidderminster Drives: 1.6 16v Sport
User status: Offline
2nd Mar 07 at 00:56   View User's Profile U2U Member Reply With Quote
Not quite sure which pipe im lookin at

i'll remove that pipe the weekend then

Thanks Dave

[Edited on 02-03-2007 by Monster]
Scotty C
Member
Registered: 6th Nov 05
Location: Kidderminster Drives: 1.6 16v Sport
User status: Offline
2nd Mar 07 at 00:59   View User's Profile U2U Member Reply With Quote
quote:
Originally posted by Superlite Ltd.


On the right? There is 2 pointing down. My front one is rubber then a metal pipe.


Yes, where 5 & 6 are. There both rubber!
