Cybermonkey

Member

Registered: 22nd Sep 02
Location: Sydney, Australia
User status: Offline

8th Jan 06 at 08:39

if it was a really really early 1.2 you may jave problems as a few came with the carb version straight from the novarse

Siberia

Member

Registered: 9th Oct 03
Location: Leprechaun Land Drives : Zafira GSI
User status: Offline

8th Jan 06 at 10:23

my 1.2 8v shafts worked fine..

Rob B

Member

Registered: 8th Jan 04
Location: Area Motorsport Drives: Race EP3
User status: Offline

8th Jan 06 at 11:06

If your going to take off the gsi pump you need a, lower alternator bracket, belt and tensioner off a 1.4 16v 1995 model

non pas or aircon

ste_nova

Member

Registered: 8th Jan 01
Location: St. Asaph, N. Wales
User status: Offline

8th Jan 06 at 11:46

thought i might have to mess with the belts etc

ste_nova

Member

Registered: 8th Jan 01
Location: St. Asaph, N. Wales
User status: Offline

9th Jan 06 at 08:51

bttt for help with imobilser wiring

scott b

Member

Registered: 23rd May 04
Location: Woolston, Drives: Combo C
User status: Offline

10th Jan 06 at 12:13

bttt

Rileysport

Member

Registered: 18th Jun 04
Location: West Yorkshire
User status: Offline

10th Jan 06 at 12:15

fuel pipe ends from the 1.6 bay

Rileysport

Member

Registered: 18th Jun 04
Location: West Yorkshire
User status: Offline

10th Jan 06 at 12:16

get the 1.6 shafts anyway too... can be used in 20xe conversions, so you'll get some cash

ste_nova

Member

Registered: 8th Jan 01
Location: St. Asaph, N. Wales
User status: Offline

10th Jan 06 at 18:02

quote:
Originally posted by SRi-Co
fuel pipe ends from the 1.6 bay

got

bttt for help with imob wiring

jamesw

Member

Registered: 28th Jun 02
Location: Station Town, County Durham
User status: Offline

10th Jan 06 at 18:07

what help you need with imob? also is your 1.2 not SPI? if so you will need a MPI fuel pump if not already mentioned.

ste_nova

Member

Registered: 8th Jan 01
Location: St. Asaph, N. Wales
User status: Offline

10th Jan 06 at 18:22

got mpi pump

got the pickup from around the barrel... and the chip from the the key... but how do i wire it in?

[Edited on 10-01-2006 by ste_nova]

jamesw

Member

Registered: 28th Jun 02
Location: Station Town, County Durham
User status: Offline

10th Jan 06 at 18:27

im guessing you dont have a pickup round your barrel at the moment then?

ste_nova

Member

Registered: 8th Jan 01
Location: St. Asaph, N. Wales
User status: Offline

10th Jan 06 at 18:32

nope... ps. it's not my barrel it's hers

will it have an imob on an m???

jamesw

Member

Registered: 28th Jun 02
Location: Station Town, County Durham
User status: Offline

10th Jan 06 at 18:45

mines an N and had one, easy way, they key, should be able to split open the plastic bit from the top and see if it has a chip in it, if it does then your sure gonna have the pickup round the barrel lock, so just unscrew and unplug the old pickup and replace with new one

ste_nova

Member

Registered: 8th Jan 01
Location: St. Asaph, N. Wales
User status: Offline

10th Jan 06 at 18:48

so where does the pickup connect to the ecu??

jamesw

Member

Registered: 28th Jun 02
Location: Station Town, County Durham
User status: Offline

10th Jan 06 at 18:51

mate if the pickup is already there you dont need to do awt, you unplug old pickup and plug new one in, you unplug old ecu, and plug new one in, it does connect to the ecu through the cars harness.

ste_nova

Member

Registered: 8th Jan 01
Location: St. Asaph, N. Wales
User status: Offline

10th Jan 06 at 18:58

and if it's not??

jamesw

Member

Registered: 28th Jun 02
Location: Station Town, County Durham
User status: Offline

10th Jan 06 at 19:27

get a haynes and try to work out where they go, im pretty sure it will already have an imob as ive said if you check if the key has a chip if it has its piss easy litterally case of changing the bits over if not your gonna have to run some wires.

ste_nova

Member

Registered: 8th Jan 01
Location: St. Asaph, N. Wales
User status: Offline

10th Jan 06 at 20:44

ok whos gonna scan me a corsa haynes wiring diagram

scott b

Member

Registered: 23rd May 04
Location: Woolston, Drives: Combo C
User status: Offline

11th Jan 06 at 12:06

ste

trip to halfords with a digital camera needed

Paul

[Edited on 11-01-2006 by scott b]

ste_nova

Member

Registered: 8th Jan 01
Location: St. Asaph, N. Wales
User status: Offline

12th Jan 06 at 18:39

lol sorted

Pin Colour Function
1 Brown/Red Alarm Input (Optional)
2 Brown/Blue Engine Management Light (Optional)
4 Brown Ground
5 Black Ignition
6 Blue/Red Speed signal from ABS/clocks (Optional)
7 Blue/Red Speed signal to Engine ECU (Transponder signal)
8 Brown/White Diagnostic (Optional)
9 Red 12V

ste_nova

Member

Registered: 8th Jan 01
Location: St. Asaph, N. Wales
User status: Offline

12th Jan 06 at 18:40

just need a pic or part numbers for a non pas, non aircon belt conversion

anyone got a pic of belt setup on a x14xe non pas and air?

ste_nova

Member

Registered: 8th Jan 01
Location: St. Asaph, N. Wales
User status: Offline

13th Jan 06 at 08:38

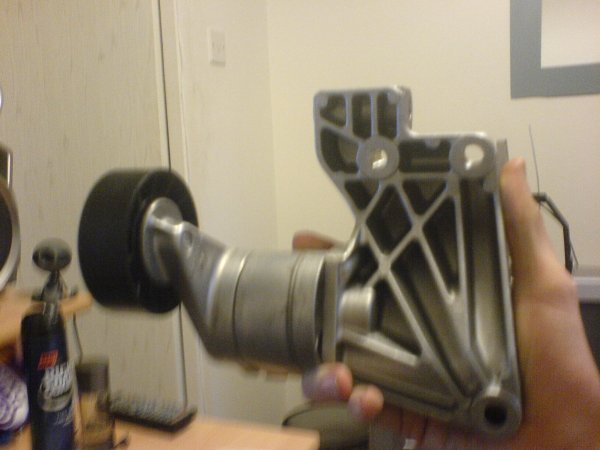

i hear i need one of these
