deano87

Member

Registered: 21st Oct 06
Location: Bedfordshire Drives: Ford Fiesta
User status: Offline

1st May 07 at 17:39

quote:
Originally posted by joe6886
Also Dean, you will need the tiny little roller which is on the top row on the right. This falls out when it breaks so could be anywhere.

kk thanks! Probably fallen out the door to be honest.

Member

Registered: 29th Jan 03
Location: Bolton, Drives Q3 S-line +
User status: Offline

1st May 07 at 18:34

Joe my local dealer is a numb nut. theres usually a older guy there but the last few times i've beem theres been a youn kid. He can't find it.

Dean if u manage to get the part can u also post up the part number plz

deano87

Member

Registered: 21st Oct 06
Location: Bedfordshire Drives: Ford Fiesta
User status: Offline

1st May 07 at 18:55

Yeah, will do, won't be a while before I enquire though.

Don't forget the ask for the black thing as well - another bit to try and get out of them

Member

Registered: 29th Jan 03
Location: Bolton, Drives Q3 S-line +
User status: Offline

2nd May 07 at 20:18

any luck Joe??

Joe

Member

Registered: 20th Jun 04
Location: Hesketh Bank, Lancashire
User status: Offline

3rd May 07 at 11:09

Part number for deadlock ring - 90540614

Your local Vauxhall dealer must be useless.

Member

Registered: 29th Jan 03
Location: Bolton, Drives Q3 S-line +
User status: Offline

3rd May 07 at 18:56

cheers Joe

deano87

Member

Registered: 21st Oct 06
Location: Bedfordshire Drives: Ford Fiesta
User status: Offline

3rd May 07 at 19:27

What about the little black bit?

Member

Registered: 29th Jan 03
Location: Bolton, Drives Q3 S-line +
User status: Offline

11th May 07 at 14:52

ok need some help here plz. been trying to put this lock back together but having some trouble.

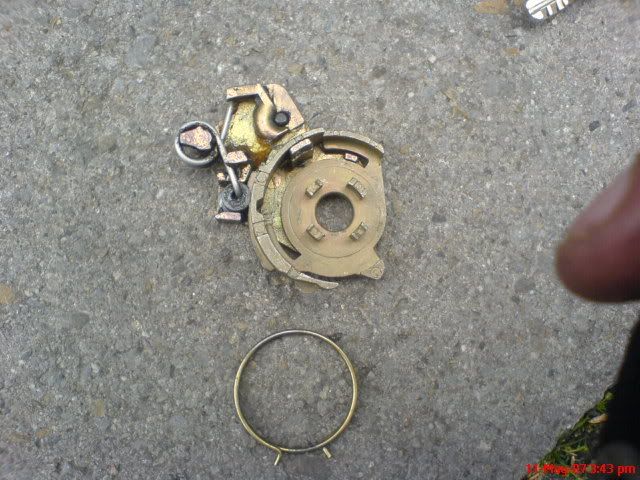

have i put the lock back together correctly? and where does the big round spring at the bottom of the pic go?

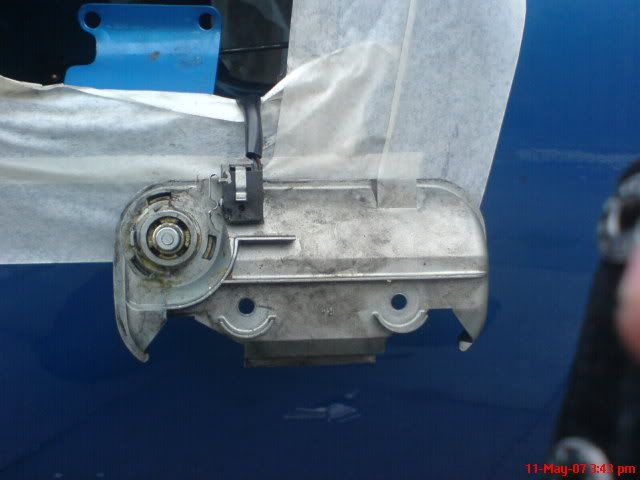

Also in the which way does the mechanism (above pic) fit onto the handle?

thanks

[Edited on 11-05-2007 by Mo]

Member

Registered: 29th Jan 03
Location: Bolton, Drives Q3 S-line +
User status: Offline

13th May 07 at 18:00

anyone?

Member

Registered: 29th Jan 03
Location: Bolton, Drives Q3 S-line +
User status: Offline

14th May 07 at 15:58

bttt

Member

Registered: 29th Jan 03
Location: Bolton, Drives Q3 S-line +
User status: Offline

15th May 07 at 11:04

Someone must know!? Got so much help before i stripped it...now no-one wants to say a thing when its in bits???

Rob_Corsa

Member

Registered: 4th Apr 02
Location: Derbyshire
User status: Offline

15th May 07 at 12:31

Ive got a pciture of one assembled but its at home and im at work. If I remember I will post it tonight.

Member

Registered: 29th Jan 03
Location: Bolton, Drives Q3 S-line +
User status: Offline

15th May 07 at 12:34

cheers Rob much appreciated

deano87

Member

Registered: 21st Oct 06
Location: Bedfordshire Drives: Ford Fiesta
User status: Offline

25th May 07 at 07:51

quote:
Originally posted by deano87

quote:
Originally posted by joe6886
Also Dean, you will need the tiny little roller which is on the top row on the right. This falls out when it breaks so could be anywhere.

kk thanks! Probably fallen out the door to be honest.

I got both these parts the other day from Vauxhall. For anyone wanting to know, the parts numbers are:

90540614 - the main part that stops the dead locks working. £4.91+VAT

9120412 - the cylinder roll bit which is tiny! £2.22+VAT!
