Author Project cheap fun (Saxo VTS) *oulton park pics poly bushes on and frost bite gained 28/11/10
DannyB
Premium Member

Avatar

Registered: 6th Feb 08
User status: Offline
25th Jul 09 at 19:18   View Garage View User's Profile U2U Member Reply With Quote
Coilovers if you have the cash, would be worth it.
Jamie_Hastings1
Member
Registered: 14th Aug 08
Location: Sanquhar, Dumfries and Galloway
User status: Offline
25th Jul 09 at 19:18   View User's Profile U2U Member Reply With Quote
I would go with the faulkner i think 50mms.
gavin18787
Premium Member

Avatar

Registered: 22nd Feb 05
Location: Basildon, Essex
User status: Offline
26th Jul 09 at 09:18   View Garage View User's Profile U2U Member Reply With Quote
quote:
Originally posted by DannyB
Coilovers if you have the cash, would be worth it.



How do they work on these out of interest as to me it looks like the shock sits in some kind of sleeve that bolts to the hub etc

Drives supercharged Tec with torque
Jamie_Hastings1
Member
Registered: 14th Aug 08
Location: Sanquhar, Dumfries and Galloway
User status: Offline
26th Jul 09 at 11:39   View User's Profile U2U Member Reply With Quote
Yeah the shock slides out of the sleeve thats part of the hub. You cant see the shock.
blue corsa
USER UNDER INVESTIGATION - DO NOT TRADE

Registered: 18th May 08
Location: Chirnside, Scottish Borders
User status: Offline
26th Jul 09 at 13:15   View User's Profile U2U Member Reply With Quote
looks nice a would smoke the front lights a few of my mate have done this on there saxos
gavin18787
Premium Member

Avatar

Registered: 22nd Feb 05
Location: Basildon, Essex
User status: Offline
26th Jul 09 at 13:20   View Garage View User's Profile U2U Member Reply With Quote
yer I was looking into this but it seems so wrong putting the lights in the oven to seperate the glass

Drives supercharged Tec with torque
DannyB
Premium Member

Avatar

Registered: 6th Feb 08
User status: Offline
26th Jul 09 at 13:24   View Garage View User's Profile U2U Member Reply With Quote
Use a heat gun.
gavin18787
Premium Member

Avatar

Registered: 22nd Feb 05
Location: Basildon, Essex
User status: Offline
26th Jul 09 at 13:37   View Garage View User's Profile U2U Member Reply With Quote
Ive got bigger fish to fry first as its developed a really annoying rattle last night

I thought it was the exhaust touching something as thats what it sounds like. But I cant see it touching on anything.
Happens only at around 2,000 rpm. Which is exactly 30mph

Drives supercharged Tec with torque
Butler
Member
Registered: 2nd Jun 05
Location: London
User status: Offline
26th Jul 09 at 14:58   View User's Profile U2U Member Reply With Quote
50mm eibachs gavin
gavin18787
Premium Member

Avatar

Registered: 22nd Feb 05
Location: Basildon, Essex
User status: Offline
26th Jul 09 at 16:43   View Garage View User's Profile U2U Member Reply With Quote
Could be a plan mr B

Ive given up with this noise and im taking it to a garage to get it up on the ramps before I go deaf. I am sure the exhaust must be vibrating against the car somewhere but cant for the life of me find where

Drives supercharged Tec with torque
gavin18787
Premium Member

Avatar

Registered: 22nd Feb 05
Location: Basildon, Essex
User status: Offline
27th Jul 09 at 18:26   View Garage View User's Profile U2U Member Reply With Quote
Right I am 99% sure I know what it is

Local exhaust place were sound and helped me out by putting the car up on the ramps to inspect the underside properly.

>found a crack in the magnex that they welded
>move the exhuast so it has more clearance.
> and we have narrowed it down to been the upper gearbox mount been fubared which is causing the whole car to vibrate and show up all these noises


Not bad for just giving them some beer money


Going to order a mount tomorow and hopefully solve it

Drives supercharged Tec with torque
Badgersport
Member
Registered: 9th Apr 04
Location: Wolverhampton
User status: Offline
27th Jul 09 at 18:27   View User's Profile U2U Member Reply With Quote
I once had a rattle on the exhaust of a vtr. It was the centre section hanger on the inside of the exhaust tunnel.. Worth a little look. That was rattling around 40mph and under braking.

Ste
Badgersport
Member
Registered: 9th Apr 04
Location: Wolverhampton
User status: Offline
27th Jul 09 at 18:28   View User's Profile U2U Member Reply With Quote
Oh ignore my last reply haha. Least you know what the problem is and its not a hard fix!

Ste
ChrisBoom
Member
Registered: 6th Dec 06
Location: Highland
User status: Offline
27th Jul 09 at 18:30   View User's Profile U2U Member Reply With Quote
Ive got a spare gearbox mount if you want it? Wont fit my XSI, but will fit your saxo.
gavin18787
Premium Member

Avatar

Registered: 22nd Feb 05
Location: Basildon, Essex
User status: Offline
27th Jul 09 at 19:10   View Garage View User's Profile U2U Member Reply With Quote
Cheers for the offer chris but I want to get it done asap so will just buy one

Thanks anyway


How many mounts are there? two on the gear box? Ie the one you can see under the battery and the lower engine one

and the two main engine ones?

Drives supercharged Tec with torque
Badgersport
Member
Registered: 9th Apr 04
Location: Wolverhampton
User status: Offline
27th Jul 09 at 19:11   View User's Profile U2U Member Reply With Quote
one drivers side below ecu. one on the rear of the gearbox and one on the pass side below the battery.
ChrisBoom
Member
Registered: 6th Dec 06
Location: Highland
User status: Offline
27th Jul 09 at 20:05   View User's Profile U2U Member Reply With Quote
quote:
Originally posted by gavin18787
Cheers for the offer chris but I want to get it done asap so will just buy one

Thanks anyway


How many mounts are there? two on the gear box? Ie the one you can see under the battery and the lower engine one

and the two main engine ones?


3 mounts in total, as said above. Its 3 bolts on the mount, battery off, put a jack under the box with a bit of wood, off with the 3 bolts, replace, easy peasy
gavin18787
Premium Member

Avatar

Registered: 22nd Feb 05
Location: Basildon, Essex
User status: Offline
27th Jul 09 at 20:11   View Garage View User's Profile U2U Member Reply With Quote

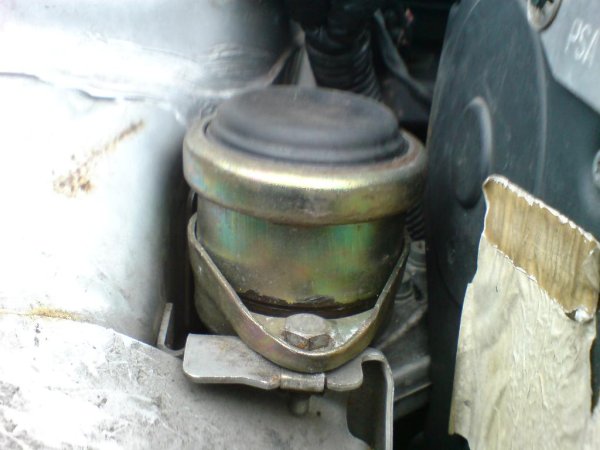

This is the one under the battery


So where are the other gearbox ones?

Drives supercharged Tec with torque
gavin18787
Premium Member

Avatar

Registered: 22nd Feb 05
Location: Basildon, Essex
User status: Offline
28th Jul 09 at 18:55   View Garage View User's Profile U2U Member Reply With Quote
Bingo Bango

Found the problem

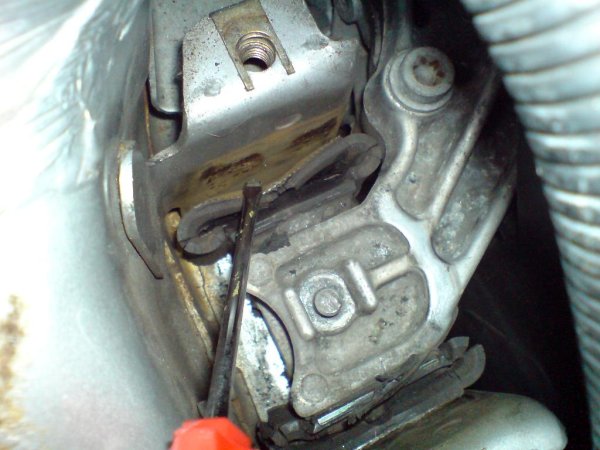

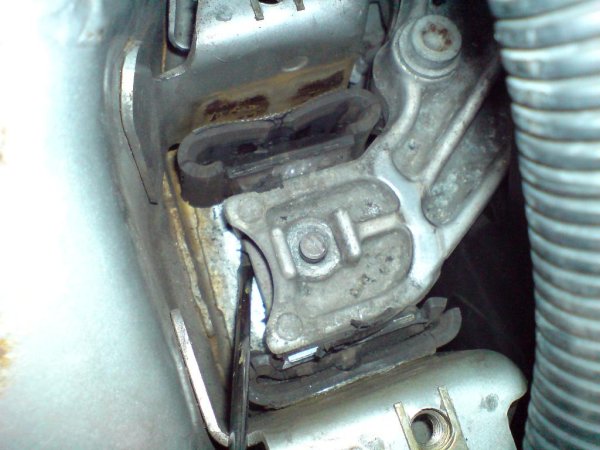

Whipped out the ECU to look at the drivers mount and came across this



Big brass ball thing was loose

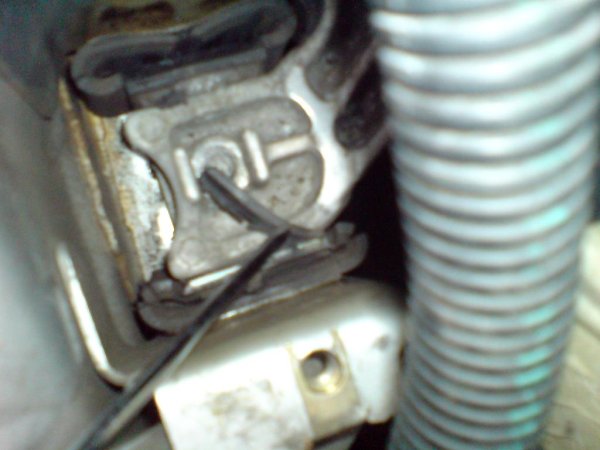

bolt going from in here

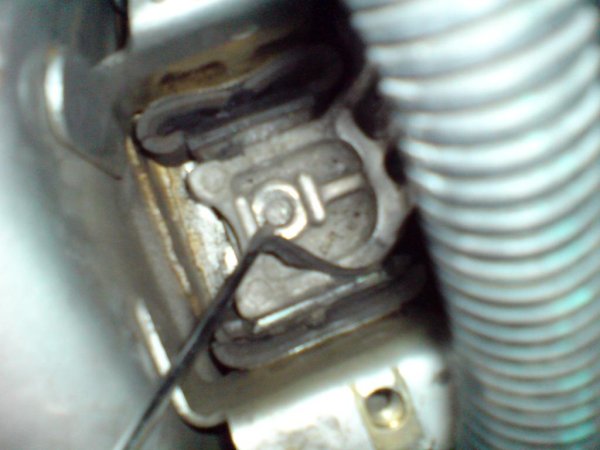

To the screwdriver end here




Broken

What do I have to replace the brass bit and bolt? or can I just get a bolt?

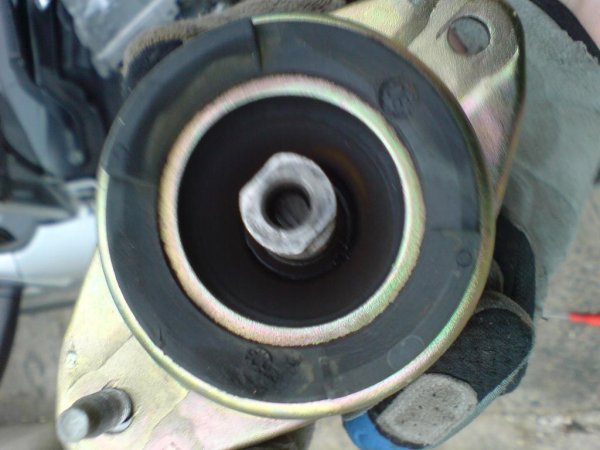

Also the rubber here is loose








Should that be replaced too?


And wheres the best place to get all this stuff?






Drives supercharged Tec with torque
jr
Member
Registered: 20th May 02
Location: Kent
User status: Offline
28th Jul 09 at 18:58   View User's Profile U2U Member Reply With Quote
gsf is your friend
gavin18787
Premium Member

Avatar

Registered: 22nd Feb 05
Location: Basildon, Essex
User status: Offline
28th Jul 09 at 19:25   View Garage View User's Profile U2U Member Reply With Quote
cheers jr

No idea what I will be asking for though. Drivers engine mount bolt, ball thingy and rubber seat thingy

Drives supercharged Tec with torque
ChrisBoom
Member
Registered: 6th Dec 06
Location: Highland
User status: Offline
28th Jul 09 at 20:56   View User's Profile U2U Member Reply With Quote
That seems to be a common one to go, my brothers GTI did exactly the same.

Cant remember what the layout of the GTI mount is again, its different on mine.

You dont need the buffer part anyways, it looks ok. Take the mount off the engine and take a look.
ChrisBoom
Member
Registered: 6th Dec 06
Location: Highland
User status: Offline
28th Jul 09 at 20:57   View User's Profile U2U Member Reply With Quote
Will most likely be this bit though:

http://www.106parts.com/s2/page1.php?area2=2&sitepage=7&area3=50&area4=213&part=7626
gavin18787
Premium Member

Avatar

Registered: 22nd Feb 05
Location: Basildon, Essex
User status: Offline
28th Jul 09 at 21:04   View Garage View User's Profile U2U Member Reply With Quote
should I get one of these as well as mine looks a bit worn and might be putting more stress on the bolt

http://www.106parts.com/s2/page1.php?area2=2&sitepage=7&area3=50&area4=213&part=14985

If I can get the bolt out the rubber head/shock thing can I just buy a bolt?

Drives supercharged Tec with torque
ChrisBoom
Member
Registered: 6th Dec 06
Location: Highland
User status: Offline
28th Jul 09 at 21:07   View User's Profile U2U Member Reply With Quote
That buffer is made of elastic bands lol, they dont do much.

Not sure, I think its all one unit. Id get one second hand, there actually all 3 bits to in on ebay for £20.
