engine wiring went behind drivers wing, car loom behind passenger wing and brake pipes were under the scuttle panel and down the sides of the wings
|
Dale
Member
Registered: 7th Oct 07
Location: Swindon
User status: Offline
|
looking great Danny, Can't wait to see this next show season
|
mike56gte
Member
Registered: 23rd Jun 09
Location: Fife, scotland Drives: Audi S3
User status: Offline
|
looking good  very clean looking shell
|
Danny W
Organiser: East Midlands
Premium Member
Registered: 14th Nov 05
Location: Northamptonshire
User status: Offline
|
Update:
I've been working on the wiring loom, fuel pipes, pas and location of the intercooler.
I'll be using a frontera intercooler to get the car running and set up
so its very slowly getting there lol but i'm a little stumped on a few things so if anyone can give me a bit of advice it'll be much appreciated.

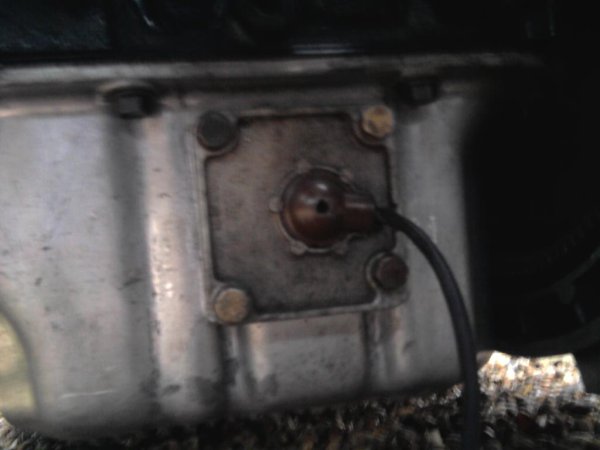

Sump, where does this wire plug into?
http://www.corsasport.co.uk/carimages/7303/Photo0248.jpg

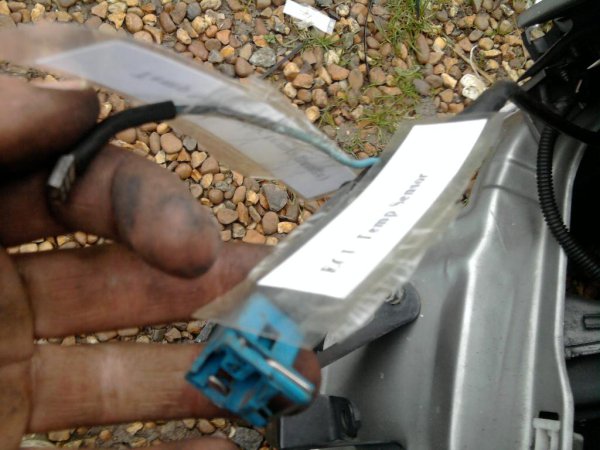

Drivers side of the engine bay, ECU temp sensor & temp sensor, where should these plug into?
http://www.corsasport.co.uk/carimages/7303/Photo0245.jpg

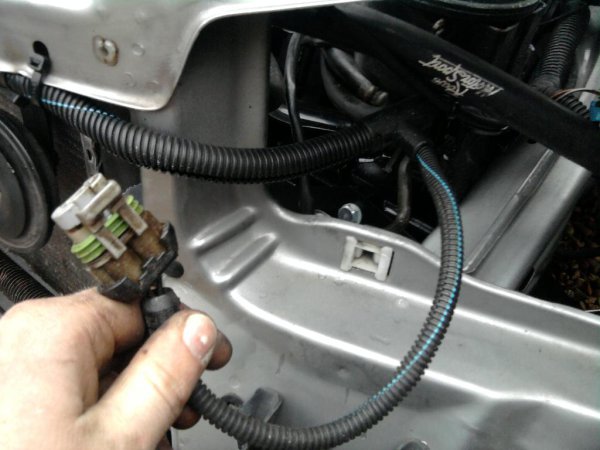

Passenger side of the engine bay, this runs off the the loom for the headlights from the car but i'm not too sure what it is or where it should go
http://www.corsasport.co.uk/carimages/7303/Photo0250.jpg

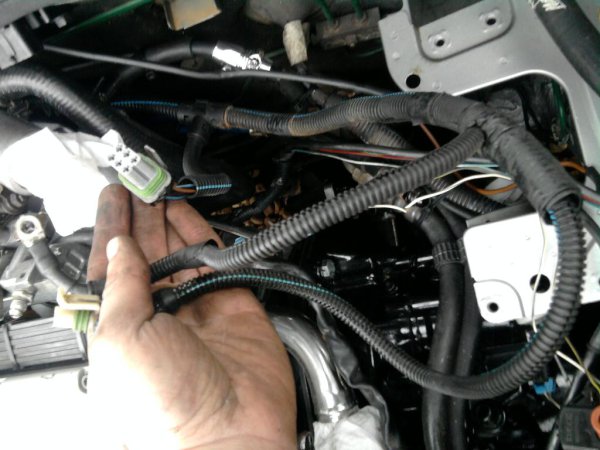

Loom running from the car??
http://www.corsasport.co.uk/carimages/7303/Photo0253.jpg
http://www.corsasport.co.uk/carimages/7303/Photo0251.jpg

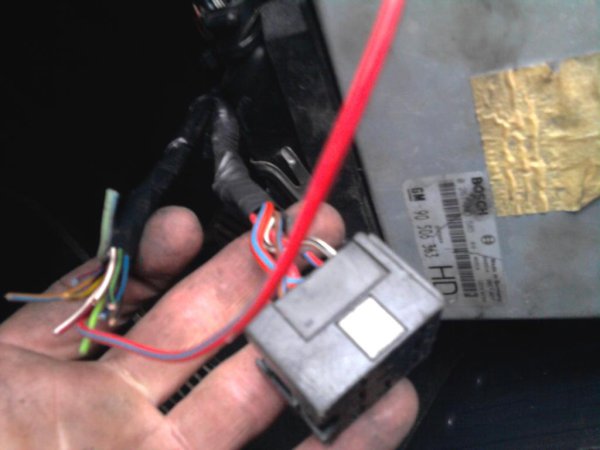

ECU
Cut loom and block? not sure where to
http://www.corsasport.co.uk/carimages/7303/Photo0259.jpg

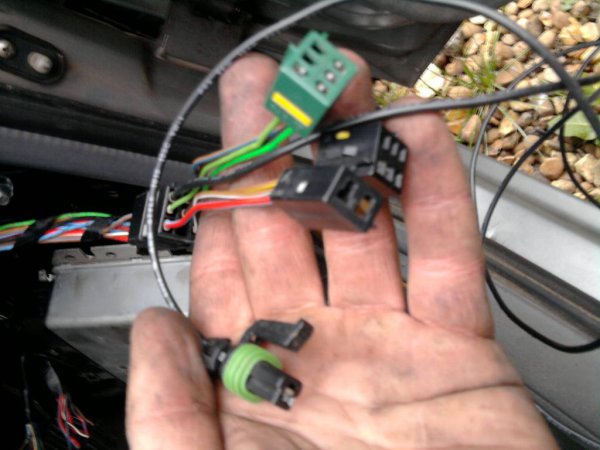

and i'll be using one of Twag's plug and play looms .. only i dont think mine is plug and play lol (assuming these will need to run to the cut side of the c20let loom?
http://www.corsasport.co.uk/carimages/7303/Photo0260.jpg
Smoke Grey 5 Door
EastMids Regional Events
|
stu_c
Member
Registered: 11th Dec 07
Location: Westleigh, Greater Manchester
User status: Offline
|
quote:
Originally posted by Danny W
Update:
Sump, where does this wire plug into?
http://www.corsasport.co.uk/carimages/7303/Photo0248.jpg
you shouldnt need it unless u are running an oil level guage
Drivers side of the engine bay, ECU temp sensor & temp sensor, where should these plug into?
http://www.corsasport.co.uk/carimages/7303/Photo0245.jpg
thermostat area i think
Passenger side of the engine bay, this runs off the the loom for the headlights from the car but i'm not too sure what it is or where it should go
http://www.corsasport.co.uk/carimages/7303/Photo0250.jpg
Loom running from the car??
http://www.corsasport.co.uk/carimages/7303/Photo0253.jpg
http://www.corsasport.co.uk/carimages/7303/Photo0251.jpg
ECU
Cut loom and block? not sure where to
http://www.corsasport.co.uk/carimages/7303/Photo0259.jpg
and i'll be using one of Twag's plug and play looms .. only i dont think mine is plug and play lol (assuming these will need to run to the cut side of the c20let loom?
http://www.corsasport.co.uk/carimages/7303/Photo0260.jpg
other than that not a clue i might not even be right about the one for the temperature
|
Danny W
Organiser: East Midlands
Premium Member
Registered: 14th Nov 05
Location: Northamptonshire
User status: Offline
|
Cheers stu, yeah that'd be right i think as i thought the blue connections were for thermostat, just wasn't 100%. I was also told to remove the wire on the sump but wanted to double check
Smoke Grey 5 Door
EastMids Regional Events
|
MarkSport
Member
Registered: 22nd May 09
User status: Offline
|
the one rinning off the light loom is for the auto level lights. the motor to control the lights
|
MarkSport
Member
Registered: 22nd May 09
User status: Offline
|
would it not be easier to get a haynes manual for the car it came out of and follow the engine loom colours that way?
|
AlexW
Member
Registered: 25th Oct 08
Location: Essex
User status: Offline
|
quote:
Originally posted by Danny W
Passenger side of the engine bay, this runs off the the loom for the headlights from the car but i'm not too sure what it is or where it should go
http://www.corsasport.co.uk/carimages/7303/Photo0250.jpg
Not sure lol
Loom running from the car??
http://www.corsasport.co.uk/carimages/7303/Photo0253.jpg
http://www.corsasport.co.uk/carimages/7303/Photo0251.jpg
Bigger plug is your starter/alt/oil pressure wiring, Small plug is (iirc) the bonnet pin switch.
ECU
Cut loom and block? not sure where to
http://www.corsasport.co.uk/carimages/7303/Photo0259.jpg
"Block" is the fuel pump relay i think
Hope that is of some help.
Good progess on the car though.
|
AlexW
Member
Registered: 25th Oct 08
Location: Essex
User status: Offline
|
quote:
Originally posted by MarkSport
the one rinning off the light loom is for the auto level lights. the motor to control the lights
Nope, thats a 3pin smaller connector.
|
Danny W
Organiser: East Midlands
Premium Member
Registered: 14th Nov 05
Location: Northamptonshire
User status: Offline
|
quote:
Originally posted by AW06
quote:
Originally posted by Danny W
Passenger side of the engine bay, this runs off the the loom for the headlights from the car but i'm not too sure what it is or where it should go
http://www.corsasport.co.uk/carimages/7303/Photo0250.jpg
Not sure lol
Loom running from the car??
http://www.corsasport.co.uk/carimages/7303/Photo0253.jpg
http://www.corsasport.co.uk/carimages/7303/Photo0251.jpg
Bigger plug is your starter/alt/oil pressure wiring, Small plug is (iirc) the bonnet pin switch.
ECU
Cut loom and block? not sure where to
http://www.corsasport.co.uk/carimages/7303/Photo0259.jpg
"Block" is the fuel pump relay i think
Hope that is of some help.
Good progess on the car though.
Perfect, thanks very much
Righto so in order of the photos
1. Oil level, (dont need this)
2. Thermostat
3. fan?
4. starter motor loom, earth & bonnet pin switch.
5. Fuel pump relay
I'll get the rest of it wired in tomorrow and hopefully get the gear linkage set and all my hoses on
Smoke Grey 5 Door
EastMids Regional Events
|
AlexW
Member
Registered: 25th Oct 08
Location: Essex
User status: Offline
|
Ah feck yeah, fan.
Sounds about right though!
|
Jamie_Hastings1
Member
Registered: 14th Aug 08
Location: Sanquhar, Dumfries and Galloway
User status: Offline
|
Black silicone AFM pipe would look much more at home mate.
|
Danny W
Organiser: East Midlands
Premium Member
Registered: 14th Nov 05
Location: Northamptonshire
User status: Offline
|
Cheers AW06
Jamie, completely agree. I've got a box full of pipes & hoses to fit including the black roose AFM pipe
Smoke Grey 5 Door
EastMids Regional Events
|
Danny W
Organiser: East Midlands
Premium Member
Registered: 14th Nov 05
Location: Northamptonshire
User status: Offline
|
Bit more progress today
Cut loom ecu side of things
http://www.corsasport.co.uk/carimages/7303/Photo0259.jpg
basically this is what would be plugging into twag's c20let conversion loom and then into the corsa loom
but becuase its all been chopped by the previous owner i went about soldering some new connections on.
Small connection block-1 (Diagnostic)
Brown/White
Brown/Yellow
Small connection block -2 (fuel Pump)
Thick Red/Blue
Green Connection block (Guages/Dash)
Brown/blue
Green
Blue
Black
So all the above photo's i wasn't sure about have all been sorted and now connected.
[Edited on 05-12-2010 by Danny W]
Smoke Grey 5 Door
EastMids Regional Events
|
MarkSport
Member
Registered: 22nd May 09
User status: Offline
|
good work mate
|
Danny W
Organiser: East Midlands
Premium Member
Registered: 14th Nov 05
Location: Northamptonshire
User status: Offline
|
Just a few photo's of parts i'm using on the build but forgot to upload to here
Black sillicone pipework for intercooler & hose joiners
Hose clamps
2x slim line fans and fitting kit
F28 corsa linkage
a few intercoolers lol .. i'll be using the bigger of the two frontera intercooler's on this build so the smaller one and the brand new volvo one will be up for sale if anyone is interested
Smoke Grey 5 Door
EastMids Regional Events
|
derick-sport
Member
Registered: 11th Sep 10
Location: Kendal, Cumbria
User status: Offline
|
this is gona be awesome mate
|
nath2905
Premium Member
Registered: 6th Sep 10
Location: Staffordshire
User status: Offline
|
thats looking awsome pal
|
Danny W
Organiser: East Midlands
Premium Member
Registered: 14th Nov 05
Location: Northamptonshire
User status: Offline
|
Cheers lads, Well today i did a bit more work on the car but as i wasn't very happy with the way it would & wouldn't select gears i had to strip it back down and remove the gearbox, once the gearbox was removed i set about splitting it to see the problem, turns out the selector rod wasn't lined up correctly
gearbox is now sorted sealed and back on the car, linkage is all fitted and so far so good i can select all the gears
Smoke Grey 5 Door
EastMids Regional Events
|
dalejones
Member
Registered: 9th Dec 08
Location: Swansea, Wales
User status: Offline
|
Nice to read this mate As i am currently doin a c20let project, will keep my eye on this! Good work mate!
|
Danny W
Organiser: East Midlands
Premium Member
Registered: 14th Nov 05
Location: Northamptonshire
User status: Offline
|
Cheers Dale, slow progress atm but it'll get there
Have you got a project thread up for your build?
Smoke Grey 5 Door
EastMids Regional Events
|
GregGsi
Premium Member
Registered: 6th Jan 08
Location: Leigh, Wigan
User status: Offline
|
F28 corsa linkage
hope all ok for you pal
BHP vaux
|
Danny W
Organiser: East Midlands
Premium Member
Registered: 14th Nov 05
Location: Northamptonshire
User status: Offline
|
All is well and the F28 Linkage Works perfectly, thanks mate
Smoke Grey 5 Door
EastMids Regional Events
|
Danny W
Organiser: East Midlands
Premium Member
Registered: 14th Nov 05
Location: Northamptonshire
User status: Offline
|
Today i got the radiator back in and began sorting the boost pipes, i made some brackets for the intercooler and got that in place too, so we are getting there roll on a xmas start up
Smoke Grey 5 Door
EastMids Regional Events
|
