AK
Member

Registered: 5th Jul 00
Location: Aberdeen City
User status: Offline
25th Jun 09 at 22:21   View User's Profile U2U Member Reply With Quote
The emtpy engine bay.....





and the remains of some bearings in the sump



Wrighty
Member
Registered: 28th Feb 04
Location: Howden
User status: Offline
26th Jun 09 at 05:45   View User's Profile U2U Member Reply With Quote
you dont mess about
Graham88
Member
Registered: 16th Apr 07
Location: South East Kent Drives: E46 M3
User status: Offline
26th Jun 09 at 14:56   View User's Profile U2U Member Reply With Quote
Do you know the extent of the damage yet?
Adam-D
Member
Registered: 11th May 02
Location: Cheshire
User status: Offline
26th Jun 09 at 19:53   View User's Profile U2U Member Reply With Quote
but
Fee
Member
Registered: 16th Nov 05
Location: With AK
User status: Offline
26th Jun 09 at 20:46   View User's Profile U2U Member Reply With Quote
new bottom end, new oil pump, new oil cooler, new bigger sump etc. Best to just give it a fresh build to make sure all the swarf from the bearings is out.
AK
Member

Registered: 5th Jul 00
Location: Aberdeen City
User status: Offline
6th Aug 09 at 08:03   View User's Profile U2U Member Reply With Quote
still gettingn built up

New Tomei forged rods, block and pistons were ok.

Sump we bought wasnt great so, extending the old one.

New turbos

New twin plate clutch

new oil cooler, new brake discs, new engie mount, new drive shaft

ouch
ed
Member
Registered: 10th Sep 03
User status: Offline
9th Aug 09 at 18:21   View User's Profile U2U Member Reply With Quote
Is a dry sump out the question?
AK
Member

Registered: 5th Jul 00
Location: Aberdeen City
User status: Offline
12th Aug 09 at 13:19   View User's Profile U2U Member Reply With Quote
simply cannot afford to just pop one in.

rebuilding a 600hp skyline engine, turbos, clutch etc isnt cheap.... ESP when the Impreza is needing a new engine, turbo, clutch too
Olsrey
Member
Registered: 13th Jan 07
Location: Bradford   Drives: LET Vectra B
User status: Offline
12th Aug 09 at 20:45   View User's Profile U2U Member Reply With Quote
quote:
Originally posted by AK
simply cannot afford to just pop one in.

rebuilding a 600hp skyline engine, turbos, clutch etc isnt cheap.... ESP when the Impreza is needing a new engine, turbo, clutch too
I want your job.
AK
Member

Registered: 5th Jul 00
Location: Aberdeen City
User status: Offline
25th Aug 09 at 11:46   View User's Profile U2U Member Reply With Quote
Some pics of the sump extension (not our actual one)




Clutch has now moved on to an O.S. Giken Triple plate..... poor fee
Adam-D
Member
Registered: 11th May 02
Location: Cheshire
User status: Offline
26th Aug 09 at 06:52   View User's Profile U2U Member Reply With Quote
will that cure the surge problems?
AK
Member

Registered: 5th Jul 00
Location: Aberdeen City
User status: Offline
26th Aug 09 at 07:15   View User's Profile U2U Member Reply With Quote
we had a baffled sump, enlarged block oil drains, external head oil drain before - and it still happened.

Adding another 2l of oil should help even further - but i dont think it'll make it 100% surge proof.
AK
Member

Registered: 5th Jul 00
Location: Aberdeen City
User status: Offline
10th Sep 09 at 11:41   View User's Profile U2U Member Reply With Quote

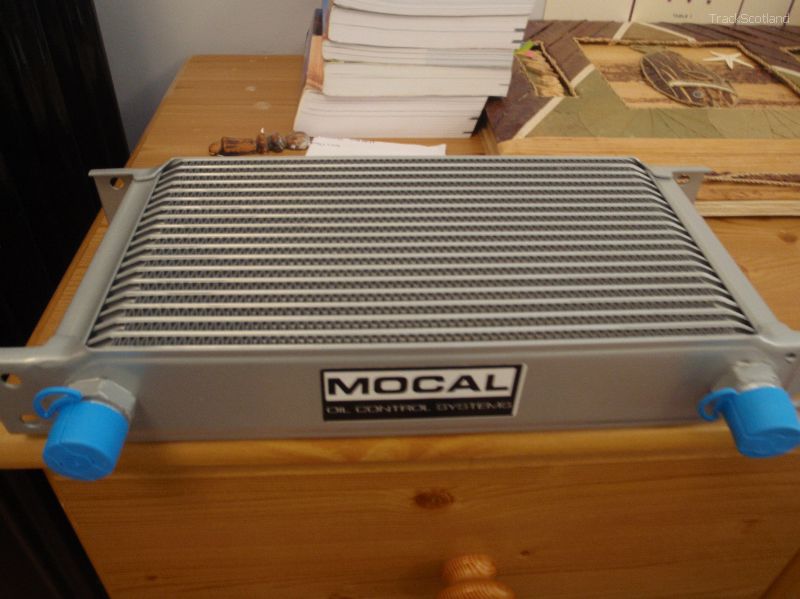

new (bigger) oil cooler.

235mm wide, 19row -10 JIC fittings.

Replaces the 16row one that was onlt engine during bearing failure.
AK
Member

Registered: 5th Jul 00
Location: Aberdeen City
User status: Offline
10th Sep 09 at 12:44   View User's Profile U2U Member Reply With Quote
New AP 355mm x 32mm discs on the way to replace the cracked (snapped) 356mm KSports.
AK
Member

Registered: 5th Jul 00
Location: Aberdeen City
User status: Offline
11th Sep 09 at 14:08   View User's Profile U2U Member Reply With Quote

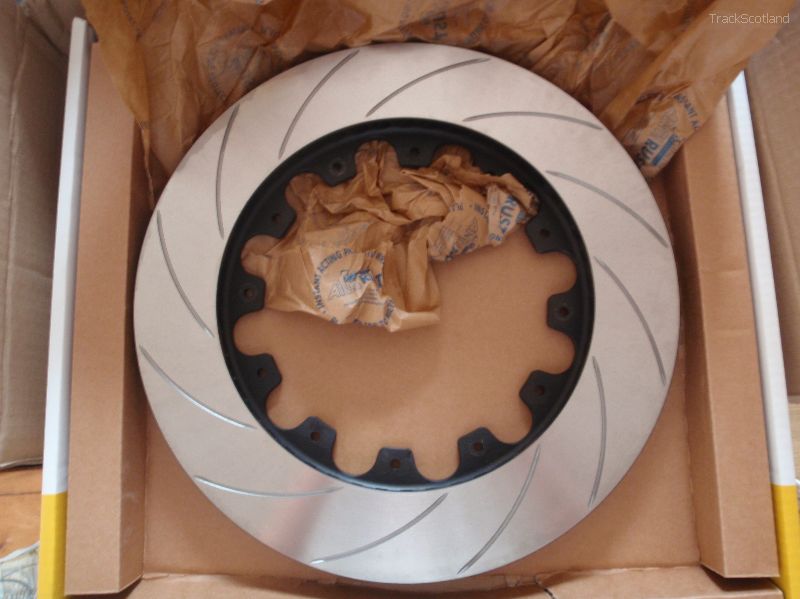

some big AP discs....
chrisritch
Member
Registered: 2nd Sep 08
Location: Northants Drives: V40
User status: Offline
11th Sep 09 at 16:18   View User's Profile U2U Member Reply With Quote
is it just me whose eyes go funny looking at tht oil cooler lol
AK
Member

Registered: 5th Jul 00
Location: Aberdeen City
User status: Offline
22nd Sep 09 at 16:26   View User's Profile U2U Member Reply With Quote
new AP discs fitted to the KSport bells. Old KSport discs were in a shocking state. Not that worn (thickness wise) but one disc was just covered in cracks!











New (or rebuilt) engine arrived from RB Looks great


sand-eel
Member
Registered: 15th Mar 07
Location: carluke/braidwood--IRNBRULAND
User status: Offline
22nd Sep 09 at 19:29   View User's Profile U2U Member Reply With Quote
jesus that disk
I wonder if it went through a puddle after severe braking or something.
AK
Member

Registered: 5th Jul 00
Location: Aberdeen City
User status: Offline
22nd Sep 09 at 19:39   View User's Profile U2U Member Reply With Quote
dont think that could be a possible cause.... who knows
sand-eel
Member
Registered: 15th Mar 07
Location: carluke/braidwood--IRNBRULAND
User status: Offline
22nd Sep 09 at 20:08   View User's Profile U2U Member Reply With Quote
It could start off microscopic cracks, then just heat cycling made the cracks bigger maybe.
FruitBooTeR
Member
Registered: 18th Jan 07
Location: Wolverhampton Drives: S15
User status: Offline
23rd Sep 09 at 08:22   View User's Profile U2U Member Reply With Quote
New engine looks great! is it a whole new rebuilt engine? i.e fully built bottom end, head etc? or just an empty block and new rebuilt head....

As your putting the forged rods and pistons in arnt you as they were ok?
AK
Member

Registered: 5th Jul 00
Location: Aberdeen City
User status: Offline
23rd Sep 09 at 11:41   View User's Profile U2U Member Reply With Quote
no, its our old engine rebuilt.

The pistons were ok.... old rods, crank were scrap.

so... the re-used parts include block, head, cams. The whole engine has been stripped (block and head) and rebuilt with new seals etc

[Edited on 23-09-2009 by AK]
Nath
Member
Registered: 3rd Apr 02
Location: MK
User status: Offline
23rd Sep 09 at 12:54   View User's Profile U2U Member Reply With Quote
Engine looks
AK
Member

Registered: 5th Jul 00
Location: Aberdeen City
User status: Offline
25th Sep 09 at 21:24   View User's Profile U2U Member Reply With Quote
Engine is now in, but not plumed in, and missing the gearbox which is getting some new seals

OS Giken triple plate clutch



Trust sump extension
Wrighty
Member
Registered: 28th Feb 04
Location: Howden
User status: Offline
25th Sep 09 at 21:48   View User's Profile U2U Member Reply With Quote
nice work as always adam but shit the bed, iv gone k-sport all round

much are the AP discs?
