Author help? removing fascia (where heater knobs are)????????
marcbcorsa
Member
Registered: 15th Sep 02
Location: Harrogate
User status: Offline
   26th May 03 at 13:26   View User's Profile U2U Member Reply With Quote
ive done everythin except taking the rear heating windscreen motor out...i dont know how to take it off, it wont budge!

i have a 1.2 16v club 1999 model...ive got the haynes manual, and its says undo retaining clips...but i cant see them..n the thin will physically not budge.

any help appreciated!
cobra148
Member
Registered: 27th Oct 01
Location: Here in front of my monitor.....
User status: Offline
26th May 03 at 13:43   View User's Profile U2U Member Reply With Quote

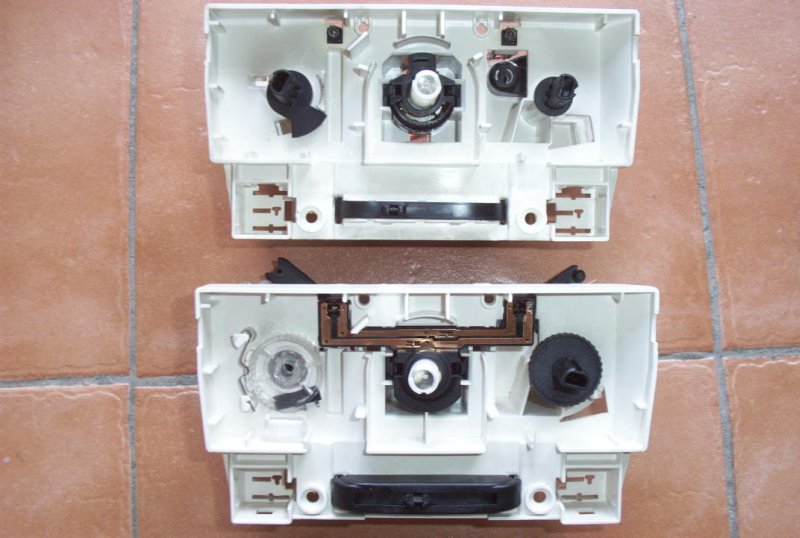

Does yours look like the bottom one in this pic?
marcbcorsa
Member
Registered: 15th Sep 02
Location: Harrogate
User status: Offline
26th May 03 at 13:46   View User's Profile U2U Member Reply With Quote
part from the fact i still have the actual fascia thin still on it......yeh
cobra148
Member
Registered: 27th Oct 01
Location: Here in front of my monitor.....
User status: Offline
26th May 03 at 13:57   View User's Profile U2U Member Reply With Quote
I assume you have removed the screws? There are two more screws above the heater switch that need removing from behind the panel, they hold the white part to the fascia. See the holes just above and to the left and right of the heater switch in the pic.
To remove the heater switch, there is a clip either side of the white knob shaft, just squeeze these together and the switch will pull out.
marcbcorsa
Member
Registered: 15th Sep 02
Location: Harrogate
User status: Offline
26th May 03 at 13:59   View User's Profile U2U Member Reply With Quote
thanks for the help bud, will go n knock it out now!! Marc
Mikorsa16v
Member
Registered: 2nd Sep 02
Location: Burgess Hill, West Sussex
User status: Offline
26th May 03 at 15:55   View User's Profile U2U Member Reply With Quote
quote:
Originally posted by marcbcorsa
thanks for the help bud, will go n knock one off first. Marc


i thought u were tryin to take the facia off mate?
