Author JR's stripped out 136 Bhp 1.4 16v as done by LM styling
Fad
Member
Registered: 1st Feb 01
Location: Dartford Kent Drives: 330cd
User status: Offline
12th Feb 04 at 12:57   View User's Profile U2U Member Reply With Quote

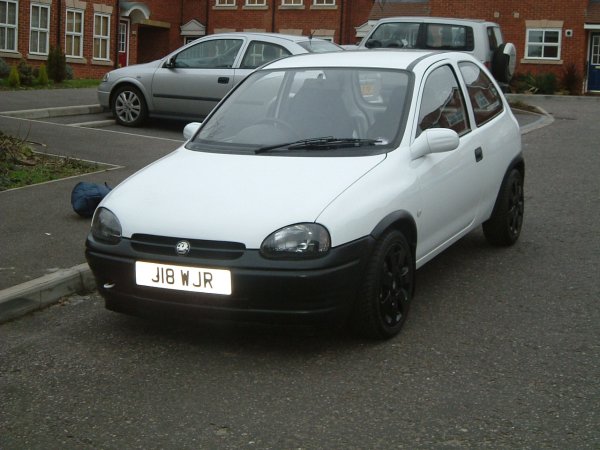

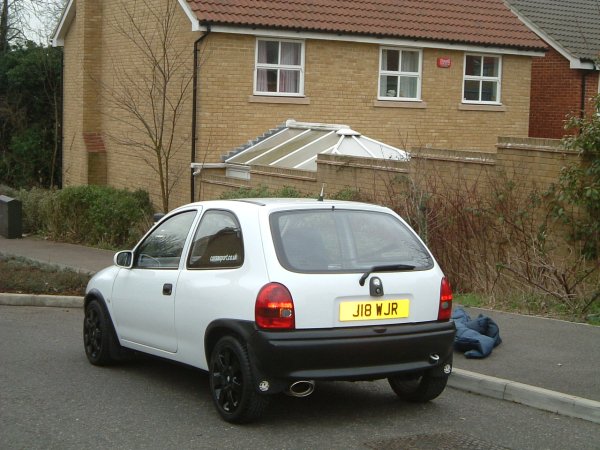

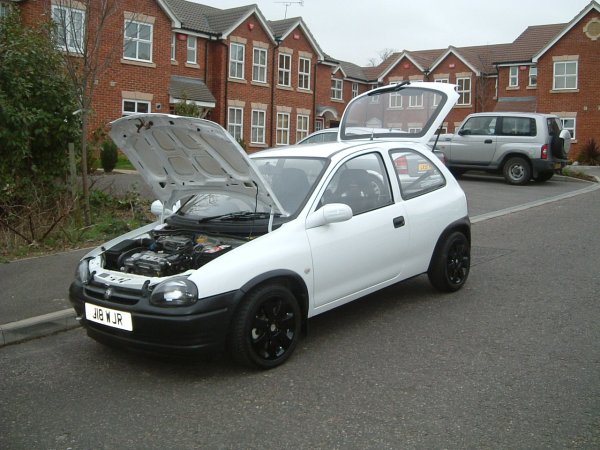

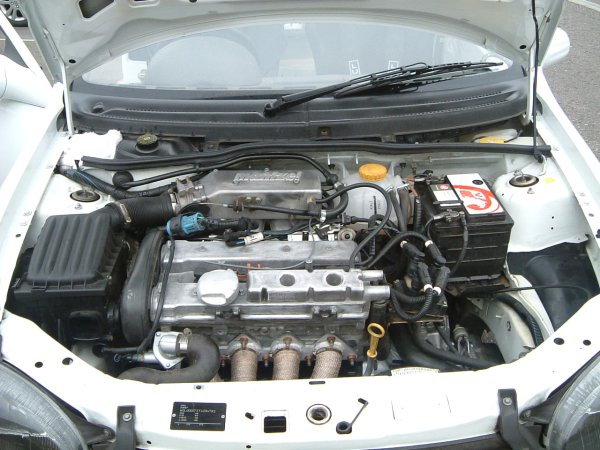

Here are some pics of JR's stripped out 1.4 16v conversion which was done by lee Mitchell and is a very tidy job.

Got to say i was amazed by how quick it was twas very brisk specially as its all stripped out, mid range is quite similar to my 2 litre i am very impressed. Had a little drive of it and it blows the socks off my old 1.4 16v Roll on the tb's james

and if anyone says it needs lowering its already lowered 40mm on koni ajustables it jst lacks an interior, and it handles the nuts

top job






























[Edited on 12-02-2004 by fadscorsa]
Adam-D
Member
Registered: 11th May 02
Location: Cheshire
User status: Offline
12th Feb 04 at 12:59   View User's Profile U2U Member Reply With Quote
looks sweet kinda like my car
but mine has door cards and a sprinkle of ice
Siberia
Member
Registered: 9th Oct 03
Location: Leprechaun Land Drives : Zafira GSI
User status: Offline
12th Feb 04 at 13:02   View User's Profile U2U Member Reply With Quote
i like the sound of all that power but ya couldnt bring yer mom shoping in it now could ya?


how much would that coversion cost using a 1.2 8v as a starter.

[Edited on 12-02-2004 by Siberia]
puchos
Member
Registered: 7th Apr 03
Location: North Wales
User status: Offline
12th Feb 04 at 13:03   View User's Profile U2U Member Reply With Quote
Looks like a tidy job, i like the sxi wheels as well they look good. nice work
PaulW
Member
Registered: 26th Jan 03
Location: Atherton, Greater Manchester
User status: Offline
12th Feb 04 at 13:05   View User's Profile U2U Member Reply With Quote
I still see a dash, some carpet, sound-proofing mats...

Still
micra_pete
Premium Member

Registered: 23rd Apr 03
Location: West Yorkshire
User status: Offline
12th Feb 04 at 13:06   View Garage View User's Profile U2U Member Reply With Quote
very nice that
Fad
Member
Registered: 1st Feb 01
Location: Dartford Kent Drives: 330cd
User status: Offline
12th Feb 04 at 13:08   View User's Profile U2U Member Reply With Quote
quote:
Originally posted by PaulW
I still see a dash, some carpet, sound-proofing mats...

Still

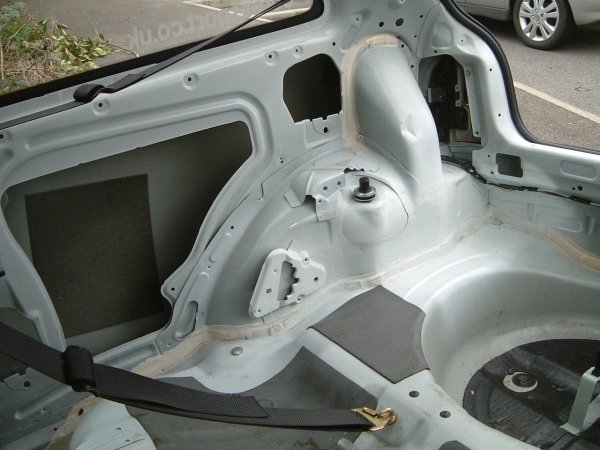

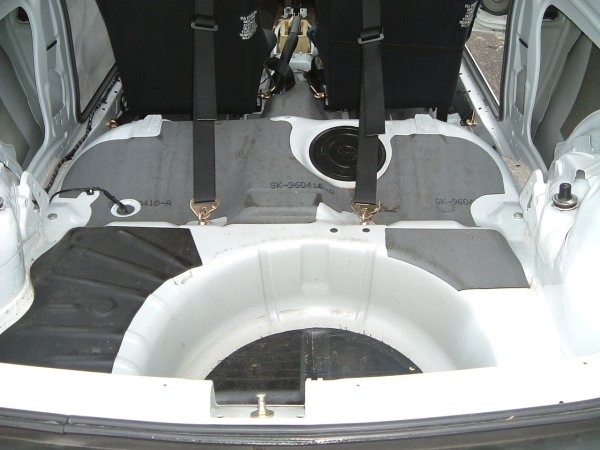

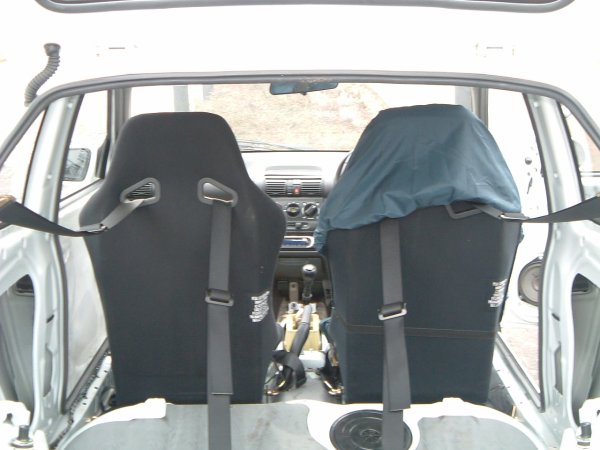

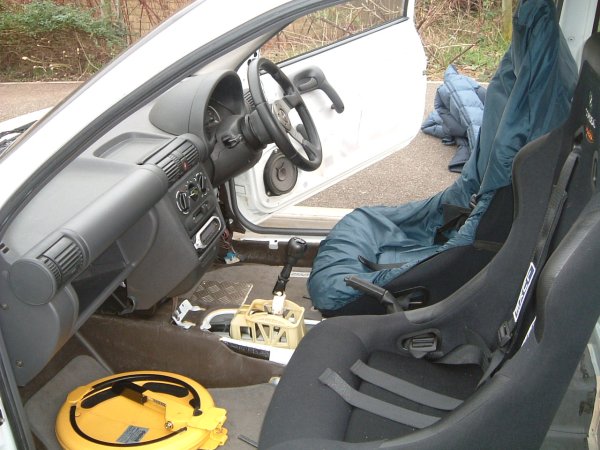

trust me it'll all be gone very soon dash is staying as it needs to look tidy. Plus its only a basic dash too If you look closely its very clean all the interior has been polished up nicely roof lining has also been removed
PaulW
Member
Registered: 26th Jan 03
Location: Atherton, Greater Manchester
User status: Offline
12th Feb 04 at 13:10   View User's Profile U2U Member Reply With Quote
MIn'es quite clean inside too, but no dash

Just gona have some pods & fek all for dials, just enough to give me my speed & other bits I need to know, all wiring re-done to remove bits i duna need & then all tidied up inside the shell!

Still def nice!! Job well done!
Steve
Premium Member

Avatar

Registered: 30th Mar 02
Location: Worcestershire Drives: Defender
User status: Offline
12th Feb 04 at 13:11   View Garage View User's Profile U2U Member Reply With Quote
whats he done to gain 50bhp?
Fad
Member
Registered: 1st Feb 01
Location: Dartford Kent Drives: 330cd
User status: Offline
12th Feb 04 at 13:14   View User's Profile U2U Member Reply With Quote
erm off the top of my head:
Shrick 264 cams ( i think)
ported polished flowed head
mantzel box
pocketed pistons
omex ECU

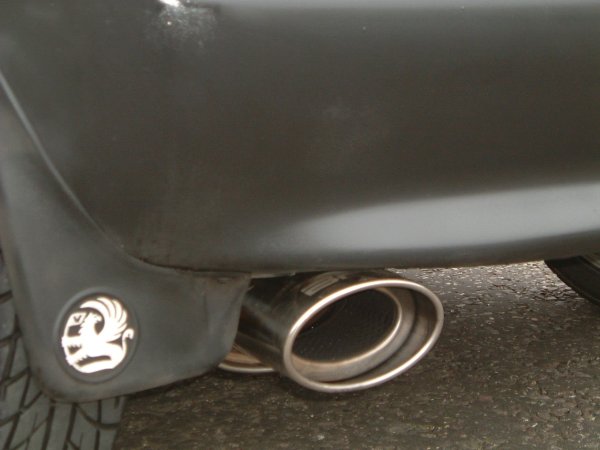

full BFO exhaust
Pannel filter
de cat
ARP conrod bolts
SBD exhaust manifold

and soon to TB's i am lead to belive

few other things i have missed i am sure James shall be online later to clarify it
Adam-D
Member
Registered: 11th May 02
Location: Cheshire
User status: Offline
12th Feb 04 at 13:15   View User's Profile U2U Member Reply With Quote
when i get me van my ice is coming out the corsa and going in the van and im in 2 mind to strip it
i rekon i will thou
PaulW
Member
Registered: 26th Jan 03
Location: Atherton, Greater Manchester
User status: Offline
12th Feb 04 at 13:17   View User's Profile U2U Member Reply With Quote
Adam you want a 12" JBL Sub in a shitty sealed box then for the van??

U2U me for details
Adam-D
Member
Registered: 11th May 02
Location: Cheshire
User status: Offline
12th Feb 04 at 13:24   View User's Profile U2U Member Reply With Quote
i got a 12" kenwood for the van and 1200w amp and my headunit
that enuff for the van coz its gotta carry tools spare wheels and parts for the corsa when i take it to track days oh yes
Tom
Member
Registered: 3rd Apr 02
Location: Wirral, Merseyside
User status: Offline
12th Feb 04 at 13:24   View User's Profile U2U Member Reply With Quote
Looks good, real sleeper, will be good when on tb's be well over 160 bhp then won't it with those cams, and pocketed pistons etc?
broster
Premium Member

Avatar

Registered: 6th Dec 02
Location: Drives: E39
User status: Offline
12th Feb 04 at 13:33   View Garage View User's Profile U2U Member Reply With Quote
sweet, looks good!
vibrio
Banned
Registered: 28th Feb 01
Location: POAH
User status: Offline
12th Feb 04 at 13:40   View User's Profile U2U Member Reply With Quote
the interior needs to be carpeted. wpuld look mucho better then. coour coded bumpers would go down well too. has he had the ECU remapped yet?
Ditch
Member
Registered: 29th Nov 02
Location: St Albans Drives: JDM Celica GT4 WRC
User status: Offline
12th Feb 04 at 13:44   View User's Profile U2U Member Reply With Quote
must have been properly mapped to be getting that figure surely?

TB's could see him over the 160 mark i suppose... could he bore the 14xe block out some maybe
lee mitchell
Member
Registered: 26th Jan 01
Location: kent...drive's: eveyones conversion cars hard lol
User status: Offline
12th Feb 04 at 13:45   View User's Profile U2U Member Reply With Quote
no the ecu is still set for when matt had the engine
lee mitchell
Member
Registered: 26th Jan 01
Location: kent...drive's: eveyones conversion cars hard lol
User status: Offline
12th Feb 04 at 13:46   View User's Profile U2U Member Reply With Quote
he could bore the block. but then he needs new pistons which where expensive. he could just put a 1.6 bottom end to get the figure a bit higher
Ditch
Member
Registered: 29th Nov 02
Location: St Albans Drives: JDM Celica GT4 WRC
User status: Offline
12th Feb 04 at 13:48   View User's Profile U2U Member Reply With Quote
quote:
Originally posted by lee mitchell
no the ecu is still set for when matt had the engine


is that the guy who built it in the first place?

surely he mapped it to those mods...?
Tom
Member
Registered: 3rd Apr 02
Location: Wirral, Merseyside
User status: Offline
12th Feb 04 at 13:52   View User's Profile U2U Member Reply With Quote
He messed with a 1.6 bottom end himself didn't he?
m4tt_c
Member
Registered: 24th Mar 02
Location: essex
User status: Offline
12th Feb 04 at 14:11   View User's Profile U2U Member Reply With Quote
looks good james.

it has an omex ecu and has been fully mapped on an engine dyno.

i think it may be a little less than the 136 bhp with the standard air box though


james if your gonna make it into a 1.6 i got the pistons, crank and block sitting in my garage.

oh yeah the rev limit is still set to 7500, can be put up to 8000 rpm if you like.

the peak power was 7033 rpm, i only lowered the rev limit cus i wanted to be more on the safe side.
m4tt_c
Member
Registered: 24th Mar 02
Location: essex
User status: Offline
12th Feb 04 at 14:12   View User's Profile U2U Member Reply With Quote
the torque would be alot better with the 1.6 bottom end. is only 107lb/ft at the moment
m4tt_c
Member
Registered: 24th Mar 02
Location: essex
User status: Offline
12th Feb 04 at 14:17   View User's Profile U2U Member Reply With Quote
out of interest, i noticed you got the cam cover on. are the vernier pulleys rubbing on it?
SetH
Member
Registered: 15th Jul 01
User status: Offline
12th Feb 04 at 14:18   View User's Profile U2U Member Reply With Quote
yesh i like that, very nice little rally slag
