Author Engine differences.XE
mav
Member
Registered: 19th Jun 01
Location: Scotland
User status: Offline
13th Feb 05 at 19:48   View User's Profile U2U Member Reply With Quote

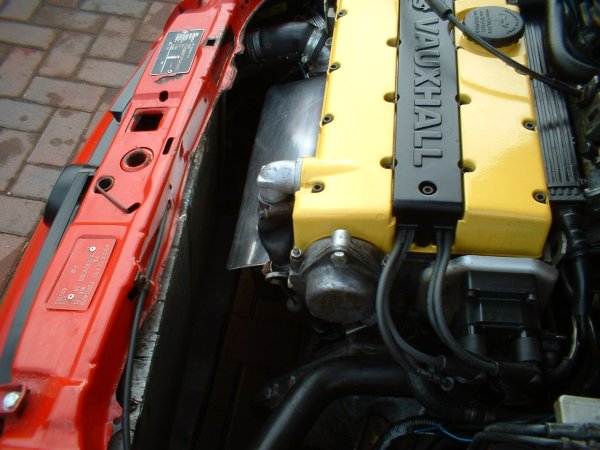

Adam B's bay.....
Distributor cap area......


mine

same area..why the difference? or is it just age of engine..
mines a 93 Cav item



[Edited on 13-02-2005 by mav]
big eck
Member
Registered: 20th Apr 03
Location: Tullibody. Drives - Audi B8 S4 & Fiesta Zetec-S
User status: Offline
13th Feb 05 at 19:50   View User's Profile U2U Member Reply With Quote
hmm, strange one that, my engines from a 93 cav gsi and it is the same as adam b's
Adam-D
Member
Registered: 11th May 02
Location: Cheshire
User status: Offline
13th Feb 05 at 19:51   View User's Profile U2U Member Reply With Quote
some had a dizzy some had a coil pack
mav
Member
Registered: 19th Jun 01
Location: Scotland
User status: Offline
13th Feb 05 at 19:53   View User's Profile U2U Member Reply With Quote
Right so it's not a botched thing........
myke
Member
Registered: 7th Feb 01
Location: High Wycombe, Buckinghamshire
User status: Offline
13th Feb 05 at 19:53   View User's Profile U2U Member Reply With Quote
coil pack engines aka dizzyless.
dunno why they changed. there must be an advantage to the coil pack.
mav
Member
Registered: 19th Jun 01
Location: Scotland
User status: Offline
13th Feb 05 at 19:55   View User's Profile U2U Member Reply With Quote
Bought a haynes will read it...on the coil pack..........

so mines is dizzyless?

[Edited on 13-02-2005 by mav]
Mattb
Member
Registered: 2nd Feb 03
Location: Under your sisters bed
User status: Offline
13th Feb 05 at 19:55   View User's Profile U2U Member Reply With Quote
quote:
Originally posted by myke
coil pack engines aka dizzyless.
dunno why they changed. there must be an advantage to the coil pack.


more reliable and better control over ignition timing
myke
Member
Registered: 7th Feb 01
Location: High Wycombe, Buckinghamshire
User status: Offline
13th Feb 05 at 19:57   View User's Profile U2U Member Reply With Quote
bradfincham
Member
Registered: 20th Sep 02
Location: East Of England Drives: Clio 172
User status: Offline
13th Feb 05 at 19:59   View User's Profile U2U Member Reply With Quote
am i right in thinking the 20xe was distrubutor and the c20xe was coil pack??
myke
Member
Registered: 7th Feb 01
Location: High Wycombe, Buckinghamshire
User status: Offline
13th Feb 05 at 20:02   View User's Profile U2U Member Reply With Quote
think they changed in 92/93, so c20xe's have dizzy too.
mine does.
Adam_B
Member
Registered: 13th Dec 00
Location: Lancashire
User status: Offline
13th Feb 05 at 20:19   View User's Profile U2U Member Reply With Quote
quote:
Originally posted by bradfincham
am i right in thinking the 20xe was distrubutor and the c20xe was coil pack??


no, C20XE just means cat. IIRC the DIS XEs also have different cambelt + tensioners
Joff
Member
Registered: 17th Oct 00
Location: Cambridgeshire
User status: Offline
13th Feb 05 at 20:23   View User's Profile U2U Member Reply With Quote
My engine's a C20XE (stamped on block) yet came from a 1990 Calibra.
bradfincham
Member
Registered: 20th Sep 02
Location: East Of England Drives: Clio 172
User status: Offline
13th Feb 05 at 20:29   View User's Profile U2U Member Reply With Quote
i just thought they changed to the coilpack when the cat was made compulsary
mav
Member
Registered: 19th Jun 01
Location: Scotland
User status: Offline
13th Feb 05 at 20:34   View User's Profile U2U Member Reply With Quote
so whats mine?
(sorry for sounding stoooooopid )
Adam_B
Member
Registered: 13th Dec 00
Location: Lancashire
User status: Offline
13th Feb 05 at 20:40   View User's Profile U2U Member Reply With Quote
Probably a very late C20XE, 92/93 onwards, although its not impossible to put a DIS pack on an earlyer dizzy XE
mav
Member
Registered: 19th Jun 01
Location: Scotland
User status: Offline
13th Feb 05 at 20:53   View User's Profile U2U Member Reply With Quote
so mine is the coil pack one yeah?
AK
Member

Registered: 5th Jul 00
Location: Aberdeen City
User status: Offline
13th Feb 05 at 20:54   View User's Profile U2U Member Reply With Quote
yup
Adam_B
Member
Registered: 13th Dec 00
Location: Lancashire
User status: Offline
13th Feb 05 at 20:55   View User's Profile U2U Member Reply With Quote
aye

to get a more reliable idea of age have a look at the cambelt, i'll find a pic...
mav
Member
Registered: 19th Jun 01
Location: Scotland
User status: Offline
13th Feb 05 at 20:55   View User's Profile U2U Member Reply With Quote
ok.............
Adam_B
Member
Registered: 13th Dec 00
Location: Lancashire
User status: Offline
13th Feb 05 at 21:05   View User's Profile U2U Member Reply With Quote

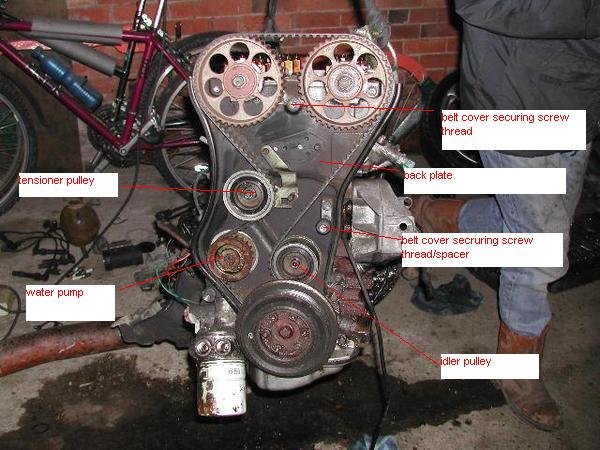

early type upto about 92 with Dizzy, same as mine



[Edited on 13-02-2005 by Adam_B]
mav
Member
Registered: 19th Jun 01
Location: Scotland
User status: Offline
13th Feb 05 at 21:06   View User's Profile U2U Member Reply With Quote
cheers..might have a look..was told it was from a 93 cav but I got no proof really............
myke
Member
Registered: 7th Feb 01
Location: High Wycombe, Buckinghamshire
User status: Offline
13th Feb 05 at 21:07   View User's Profile U2U Member Reply With Quote
you can tell just by the shape of the belt cover.
later ones had a more protrusive shape around the idler.

also early have round toothed belts, late have square toothed.
mav
Member
Registered: 19th Jun 01
Location: Scotland
User status: Offline
13th Feb 05 at 21:26   View User's Profile U2U Member Reply With Quote
cheers

Mine is the only engine i've seen like this..

all other XE's I look at has the Dizzy.............
corb
Member
Registered: 24th Apr 02
Location: Calgary, Alberta, Canada
User status: Offline
13th Feb 05 at 21:35   View User's Profile U2U Member Reply With Quote
quote:
Originally posted by Joff
My engine's a C20XE (stamped on block) yet came from a 1990 Calibra.


unless you knew the full history of the cally, couldve had an engine swap?
mav
Member
Registered: 19th Jun 01
Location: Scotland
User status: Offline
13th Feb 05 at 21:43   View User's Profile U2U Member Reply With Quote
another cosmetic diff is the writing.

some have dohc 16v horizontal beside vaux.

mine and others it vertical at the lhs...........
