Hey guys got my x16xe yesterday i know it needs a few hoses but not sure which ones could someone help me out please

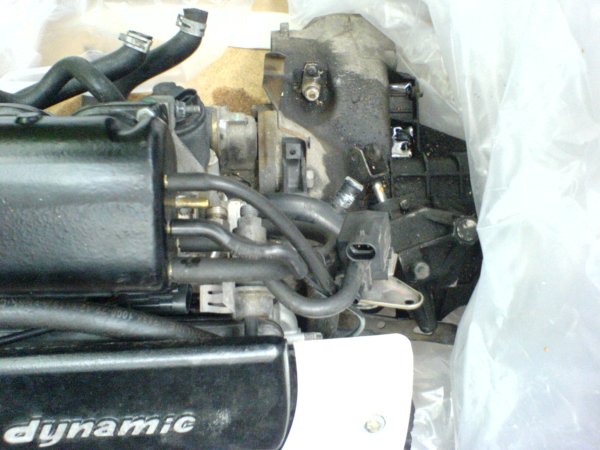

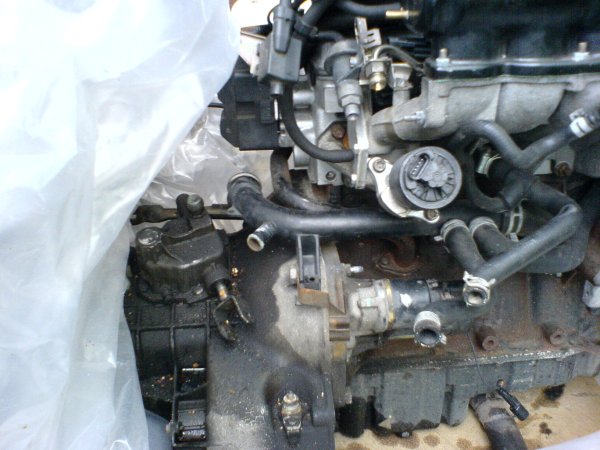

Heres the pics of the engine, i would be greatful if you could circle the bit your on about and tell me which hose i need, sorry to be a pain the arse

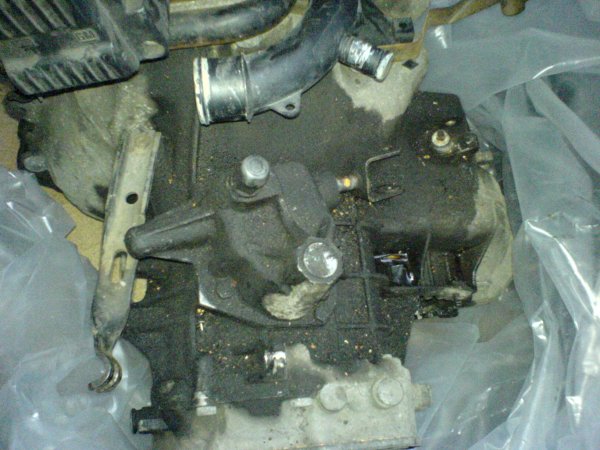

Also is there a clutch on the engine as it was supposed to come with one

I know it needs a alternator belt and a rad too ...

Cheers

Cheers

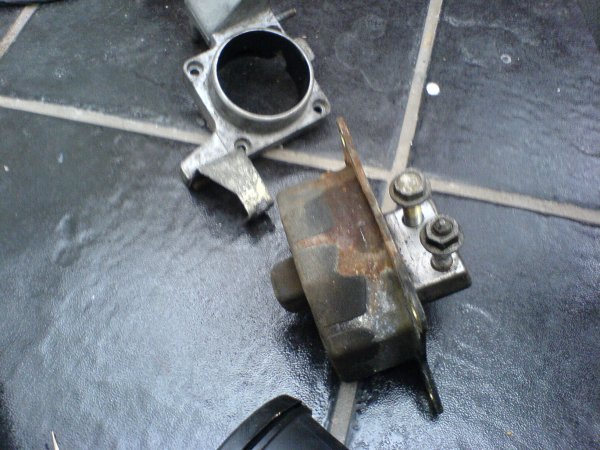

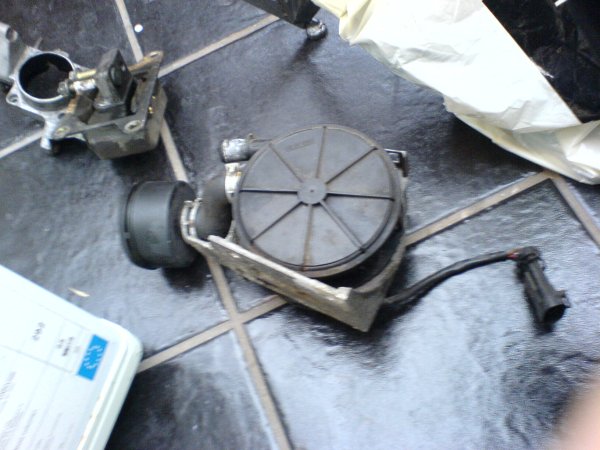

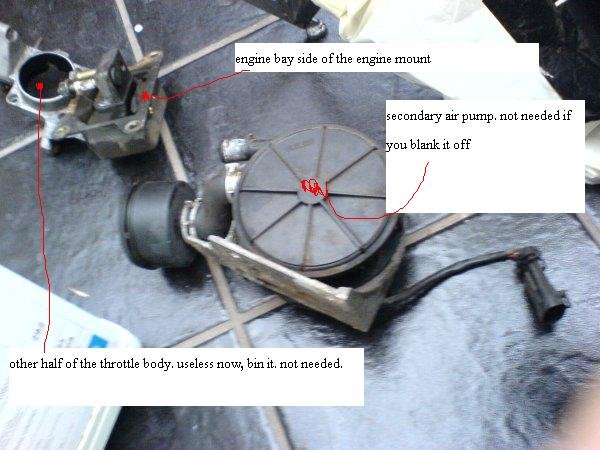

And what are these things that came seperate ?

I also have the wiring loom

but that all looks fine

[Edited on 02-10-2005 by Rob B]

RobHayes

Member

Registered: 6th Sep 03
Location: Lincolnshire
User status: Offline

2nd Oct 05 at 17:01

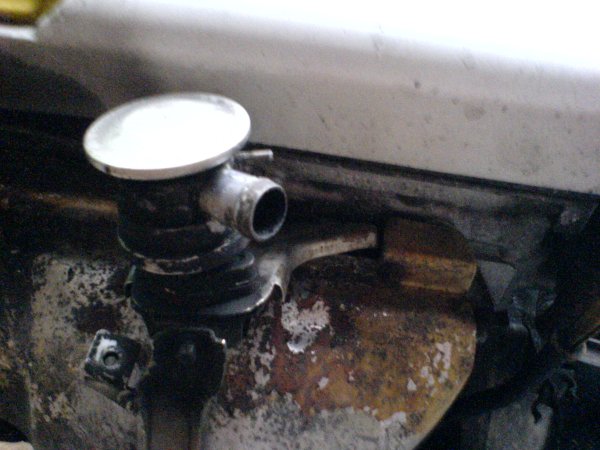

engine mount (thats the bit that fits in the chassis leg, same as what yours has, pick the opne that looks in better condition and blot the bit i got for you onto it)

Tom J

Organiser: South Wales
Premium Member

Registered: 8th Sep 03
Location: Bridgend
User status: Offline

2nd Oct 05 at 17:02

did you get the ECU and the transponder?

Rob B

Member

Registered: 8th Jan 04
Location: Area Motorsport Drives: Race EP3
User status: Offline

2nd Oct 05 at 17:04

quote:
Originally posted by RobHayes

engine mount (thats the bit that fits in the chassis leg, same as what yours has, pick the opne that looks in better condition and blot the bit i got for you onto it)

" pick the opne that looks in better condition and blot the bit i got for you onto it)"

What do you mean there Rob

me being dumb probably, do i still need the mount im buying off you

Tom, yes i have the ECU whats the transponder look like

I can get a ecu , transponder and key anyways

Rob B

Member

Registered: 8th Jan 04
Location: Area Motorsport Drives: Race EP3
User status: Offline

2nd Oct 05 at 17:05

Also is that the alternator belt that i need

RobHayes

Member

Registered: 6th Sep 03
Location: Lincolnshire
User status: Offline

2nd Oct 05 at 17:38

the engine mount is in two parts, the bit that fits to the car, and the bit that fits to the engine. the bit in the car (pictured there) is the same, so you may as well use the best of the two.

Rob B

Member

Registered: 8th Jan 04
Location: Area Motorsport Drives: Race EP3
User status: Offline

2nd Oct 05 at 17:50

Dave A

USER UNDER INVESTIGATION - DO NOT TRADE

Registered: 10th Dec 03
Location: County Durham
User status: Offline

2nd Oct 05 at 18:52

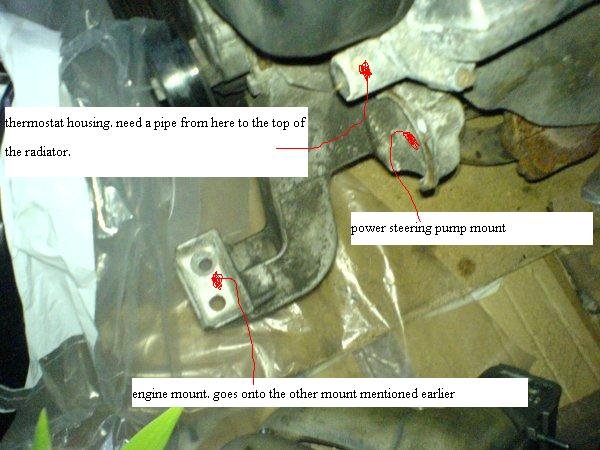

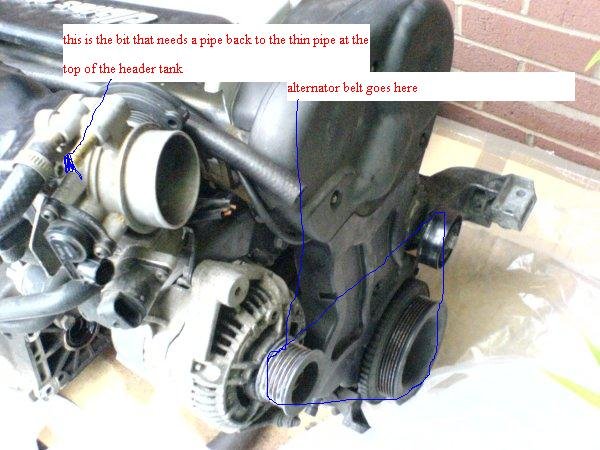

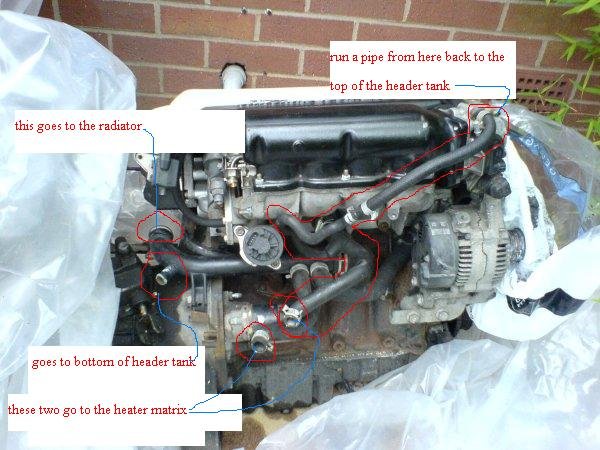

here goes:

think that covers it. there is a better way to plumb in that throttler body piping tho, hang on ill get you a pic....

Siberia

Member

Registered: 9th Oct 03
Location: Leprechaun Land Drives : Zafira GSI
User status: Offline

2nd Oct 05 at 18:54

dont need much there from what i can tell

fan belt, power steering pump... cant see anything else missing..

yes you have a clutch its between the engine and the gearbox!

diblas...

Dave A

USER UNDER INVESTIGATION - DO NOT TRADE

Registered: 10th Dec 03
Location: County Durham
User status: Offline

2nd Oct 05 at 18:56

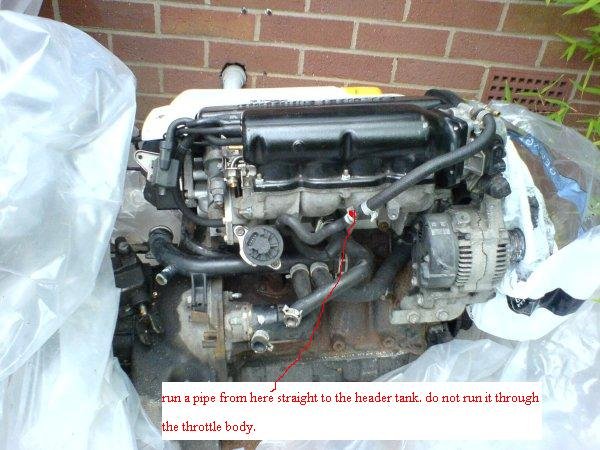

heres a better way to do it:

im off to cook dinner now. bye bye

Sly_SRi

Premium Member

Registered: 9th Apr 04
Location: Reading, UK Drives: Corsa C
User status: Offline

2nd Oct 05 at 18:58

beat me to it!

Corsa C Z20Let

Black Sleeper Turbo Project

Rob B

Member

Registered: 8th Jan 04
Location: Area Motorsport Drives: Race EP3
User status: Offline

2nd Oct 05 at 18:58

Cheers corsa 808 great help ! , im using my EPS so shouldnt need pas pump if im correct ? I need a de-cat cause the engine has no cat so if money allows i may also get a four branch manifold mate

This is going in a 1.2 16v corsa B by the way

Dave A

USER UNDER INVESTIGATION - DO NOT TRADE

Registered: 10th Dec 03
Location: County Durham
User status: Offline

2nd Oct 05 at 19:08

quote:
Originally posted by Rob B
Cheers corsa 808 great help ! , im using my EPS so shouldnt need pas pump if im correct ? I need a de-cat cause the engine has no cat so if money allows i may also get a four branch manifold mate This is going in a 1.2 16v corsa B by the way

ill speak to a mate, he has a spare pas pump. and the wiring is a little more difficult when going into a 1.2 16v.

Siberia

Member

Registered: 9th Oct 03
Location: Leprechaun Land Drives : Zafira GSI
User status: Offline

2nd Oct 05 at 19:08

just remember you wont pass an mot without a cat.... do you have the wireing loom? i dont see it?

Dave A

USER UNDER INVESTIGATION - DO NOT TRADE

Registered: 10th Dec 03
Location: County Durham
User status: Offline

2nd Oct 05 at 19:11

quote:
Originally posted by Siberia
just remember you wont pass an mot without a cat.... do you have the wireing loom? i dont see it?

was thinking this as well.

Rob B

Member

Registered: 8th Jan 04
Location: Area Motorsport Drives: Race EP3
User status: Offline

2nd Oct 05 at 19:12

quote:
Originally posted by corsa808

quote:
Originally posted by Rob B
Cheers corsa 808 great help ! , im using my EPS so shouldnt need pas pump if im correct ? I need a de-cat cause the engine has no cat so if money allows i may also get a four branch manifold mate This is going in a 1.2 16v corsa B by the way

ill speak to a mate, he has a spare pas pump. and the wiring is a little more difficult when going into a 1.2 16v.

Dont need one cause im using my electronice power steering i have been told,

Siberia - i have the wiring loom seperatly

Rob B

Member

Registered: 8th Jan 04
Location: Area Motorsport Drives: Race EP3
User status: Offline

2nd Oct 05 at 19:14

Mate who i bought off has said it needs ..

water temp sensor
Crank position sensor
water pipes and rad pipe
And maybe gear linkage

not sure if i can use my 1.2 linkage though..

Siberia

Member

Registered: 9th Oct 03
Location: Leprechaun Land Drives : Zafira GSI
User status: Offline

2nd Oct 05 at 19:23

the the 1 linkage i'm not sure about...

1.2 8v, 1.4 and 1.6 gear linkages are all the same... dunno if the 1.2 16v is the same but i would imagine ti is as i think they use the f13 gearbox...!

it does need both rad hoses... although you 1.2 pasenger side hose should fit...

cant see the cts or the crank angle sensor from the pics...

[Edited on 02-10-2005 by Siberia]

RobHayes

Member

Registered: 6th Sep 03
Location: Lincolnshire
User status: Offline

2nd Oct 05 at 19:34

gear linkage is the same, well mine was

Rob B

Member

Registered: 8th Jan 04
Location: Area Motorsport Drives: Race EP3
User status: Offline

2nd Oct 05 at 19:35

Cool cheers Rob

Thanks everyone for the help so far been top notch
