Author loom slimmed down
Adam-D
Member
Registered: 11th May 02
Location: Cheshire
User status: Offline
8th Feb 06 at 15:47   View User's Profile U2U Member Reply With Quote

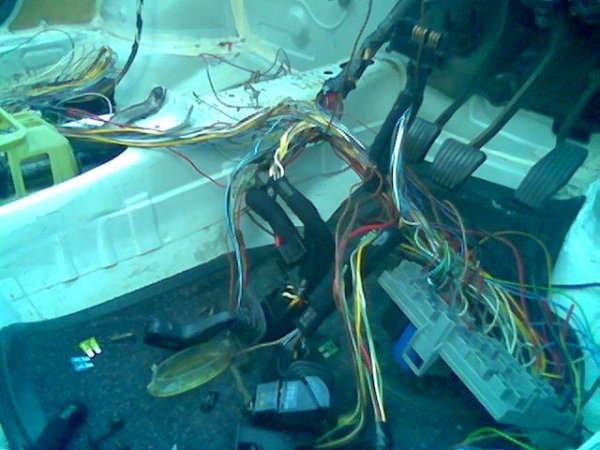

proababy cant tell but this is my loom now, all slimmed down






and this is what i removed





[Edited on 08-02-2006 by Adam-D]
Rus
Member
Registered: 24th Jan 05
Location: SE London, Kent
User status: Offline
8th Feb 06 at 15:48   View User's Profile U2U Member Reply With Quote
you filthy bitch
Adam-D
Member
Registered: 11th May 02
Location: Cheshire
User status: Offline
8th Feb 06 at 15:48   View User's Profile U2U Member Reply With Quote
and the stero and mfd is a fucking massive loom its tied into fucking alsorts
AuroraSport
Member
Registered: 5th Mar 05
Location: Norfolk Drives: Audi B5 S4 Avant
User status: Offline
8th Feb 06 at 15:49   View User's Profile U2U Member Reply With Quote
quote:
Originally posted by Adam-D
and the stero and mfd is a fucking massive loom its tied into fucking alsorts


yes i found this out when repairing my stereo loom
Rileysport
Member
Registered: 18th Jun 04
Location: West Yorkshire
User status: Offline
8th Feb 06 at 15:50   View User's Profile U2U Member Reply With Quote
bit extreme adam
Adam-D
Member
Registered: 11th May 02
Location: Cheshire
User status: Offline
8th Feb 06 at 15:52   View User's Profile U2U Member Reply With Quote
ive got 4 wires left, 2 for the mfd, that go to the outside temp and 2 that tie into the wipers for the rear wiper, i cba unwrapping the bay loom yet

and the heater has a massive 30a on it straight to the ignition fark

and yes i cut about 3 wires i shudnt have they will be re-done when i find my soldering iron,
on a plus there was fueses and loom for central locking and elec windows, not thats its much use now in the rear boot well
Adam-D
Member
Registered: 11th May 02
Location: Cheshire
User status: Offline
8th Feb 06 at 15:55   View User's Profile U2U Member Reply With Quote
sri if i got a 2.0 upfront im losing all weight i can
firbe wings, bonnet, boot, polycarb windows, and that bulkhead bit that ppl make a hole in for the xe
im just gonna cut it out in 1 and sticth weld the whole car, even all them little loom screw things that you clip the loom to ive cut off, and im re routin the brake lines from behind the engine to up top below the windscreen
a_j_mair
Member
Registered: 23rd Jan 04
Location: Scotland
User status: Offline
8th Feb 06 at 15:59   View User's Profile U2U Member Reply With Quote
your cutting the bulk head out is that not dangerous? protection in a crash, if it caught fire etc?
Adam-D
Member
Registered: 11th May 02
Location: Cheshire
User status: Offline
8th Feb 06 at 16:01   View User's Profile U2U Member Reply With Quote
nooo just the top lip that the bonnet seal sits on, its there to protect the heater system
as i dont have a heater system no point it being there
ill just have 1 small bracket to secure the scuttle cover down
Claire
Member
Registered: 19th Jan 03
Location: The Sarrrf
User status: Offline
8th Feb 06 at 16:07   View User's Profile U2U Member Reply With Quote
so you're losing wires to save weight? Or have I got that wrong?
Adam-D
Member
Registered: 11th May 02
Location: Cheshire
User status: Offline
8th Feb 06 at 16:14   View User's Profile U2U Member Reply With Quote
yes and there not neededheater stereo mfd interior lighting all not needed so removed it all
a_j_mair
Member
Registered: 23rd Jan 04
Location: Scotland
User status: Offline
8th Feb 06 at 16:14   View User's Profile U2U Member Reply With Quote
how did you know what wire to cut out
Rileysport
Member
Registered: 18th Jun 04
Location: West Yorkshire
User status: Offline
8th Feb 06 at 16:15   View User's Profile U2U Member Reply With Quote
quote:
Originally posted by a_j_mair
how did you know what wire to cut out


its all about tracing back
Adam-D
Member
Registered: 11th May 02
Location: Cheshire
User status: Offline
8th Feb 06 at 16:17   View User's Profile U2U Member Reply With Quote
just unwrapped the loom grabed the plug say for the rear speaker floowed it down to the stereo iso and cut it off

same with heaters heated rear window rear wiper c/l e/w ariel, etc etc
