Author my corsa build c20let the end is now
GregGsi
Premium Member

Avatar

Registered: 6th Jan 08
Location: Leigh, Wigan
User status: Offline
22nd Aug 10 at 19:47   View Garage View User's Profile U2U Member Reply With Quote

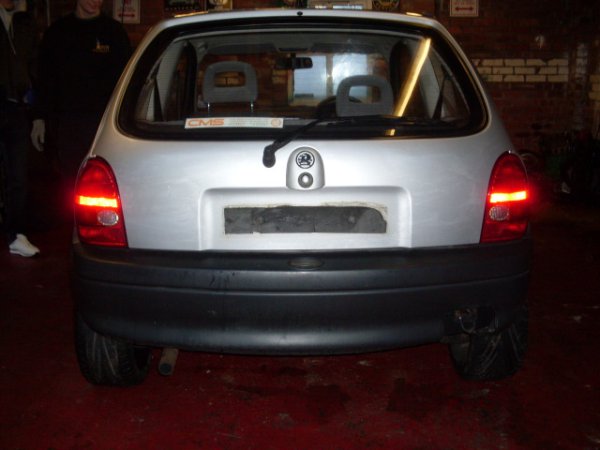

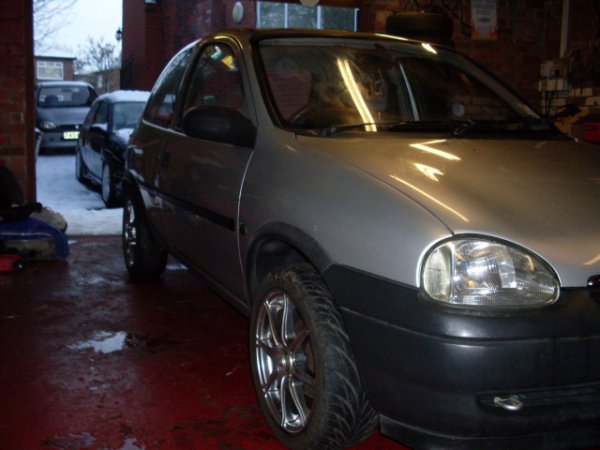

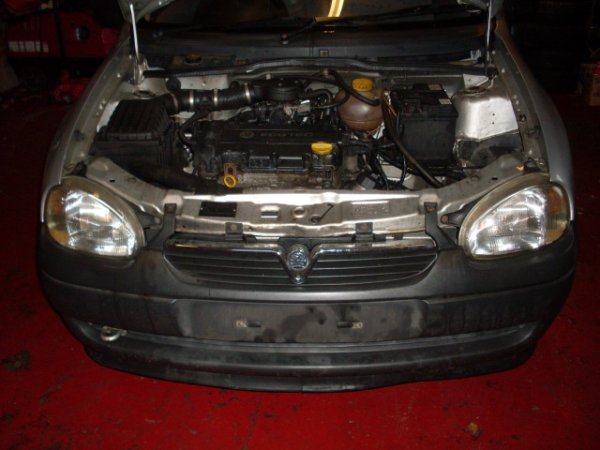

I have got a V reg 1.0 envoy in star silver
I picked it up cheap last year on the 21/12/2009
it had a popped head gasket so only payed £200
with only 56 thow on it and a full mot and a full tank good times

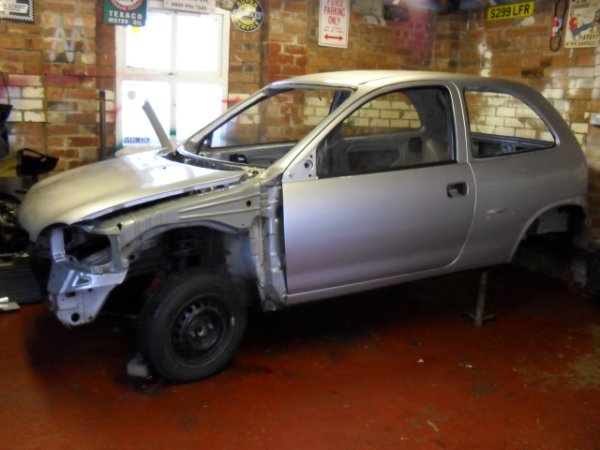

its going to be my new shell to fit my c20let

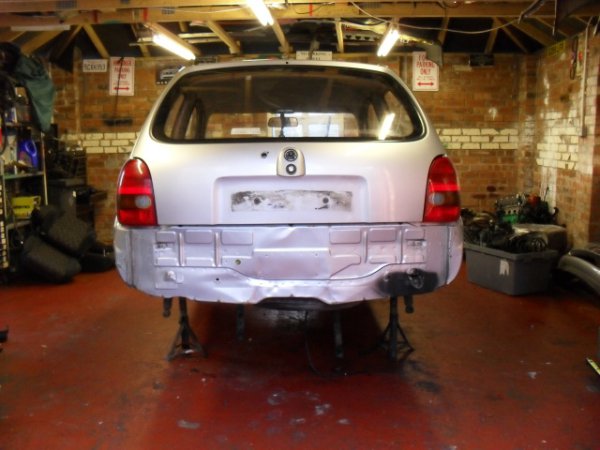

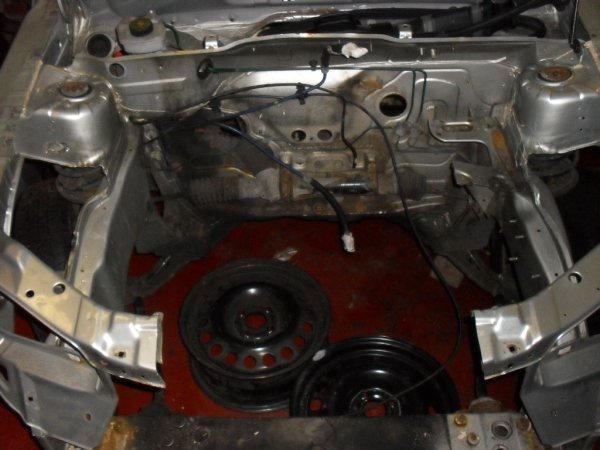

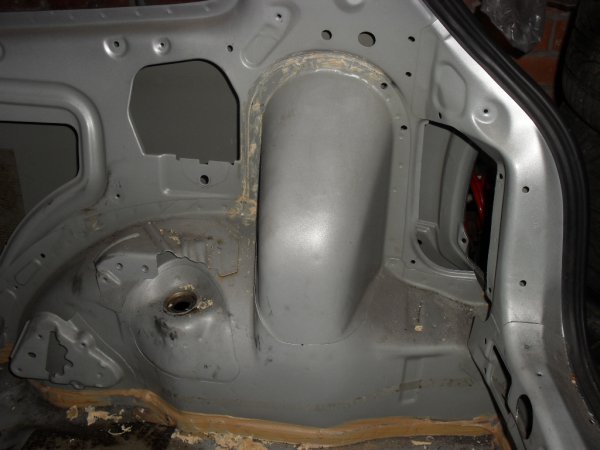

then stripped it all down then started cutting taking out the

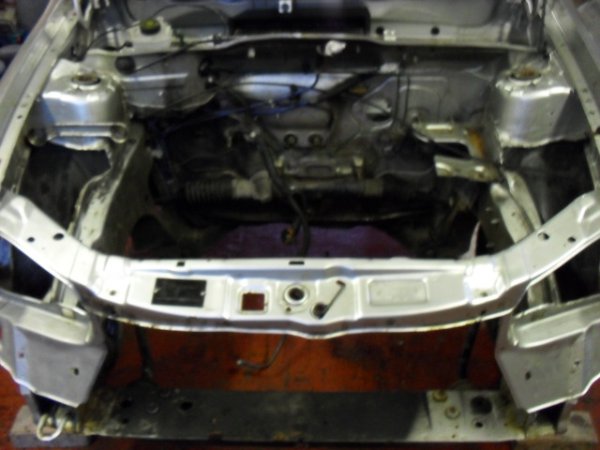

slam panel
boot floor
filler neck
and removing sound dedning









[Edited on 22-08-2010 by GregGsi]

[Edited on 05-09-2010 by GregGsi]

[Edited on 23-11-2010 by GregGsi]

BHP vaux
GregGsi
Premium Member

Avatar

Registered: 6th Jan 08
Location: Leigh, Wigan
User status: Offline
22nd Aug 10 at 20:03   View Garage View User's Profile U2U Member Reply With Quote
well then i moved on to rebillding my c20let that i got off daz1985




then pulled it to bits

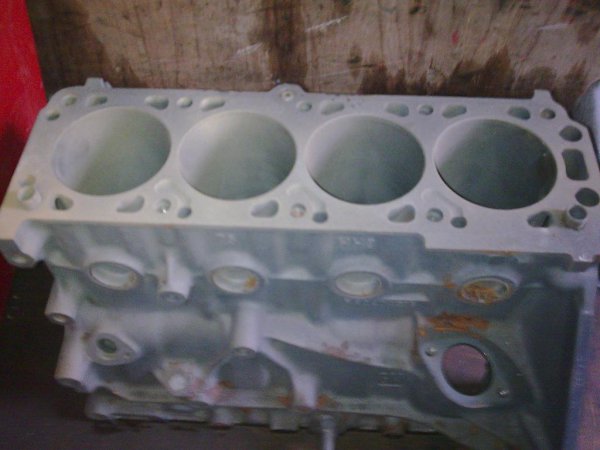

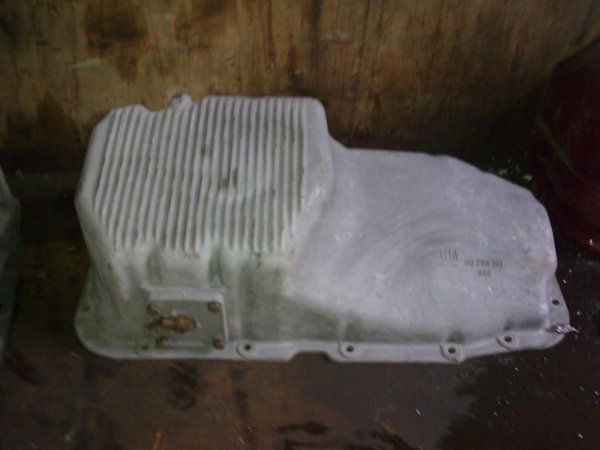

then when it was all stripped down i took the block and sump to be acid dipped





[Edited on 22-08-2010 by GregGsi]

[Edited on 22-08-2010 by GregGsi]

BHP vaux
GregGsi
Premium Member

Avatar

Registered: 6th Jan 08
Location: Leigh, Wigan
User status: Offline
22nd Aug 10 at 21:04   View Garage View User's Profile U2U Member Reply With Quote
THE SPEC
.ENGINE.
c20let
block top refaced
painted black
Overbore 86.5mm
ported, polished, Skimmed coscast / Headwork by philip2
piper double valve springs
Bronze Valve Guides
xe cams
t3 turbo
zlet pick up and pump from steveboyslim
oil jets fitted by steveboyslim
billet pot type flywheel
h section rods from steveboyslim
2mm cometic head gaskett
kent verniers
regal top hat
arp fly, head, maens, rods,
tx autosport water bar
tx autosport dipstick breather
tx autosport magnetic sump plug
cool running thermostat
single-v bottom
baileys header tank
13 row mocal cooler
FPR blanking plate
tx autosport alloy radiator
Walbro fuel pump
tial 44m v band external wastegate
Wideband innovate wideband lc-1
3 inch exhaust
.BODY.

to be resprayed
Chassis strengthening kit,

.SUSPENSION.

spax rsx fronts
300lb front springs
avo rear
lowered tiebars
whiteline rear arb
eccentric top mounts
full car polybushes kit
equal length driveshafts
steel rear strut brace from Team Griffinsport
gsi 22mm front anti roll bar
Chassis strengthening kit welded on from Team Griffinsport
Front tie bar lowering plates
Battery relocated to boot

.BRAKES.

goodridge braided hoses

.WHEELS AND TYRES.

.INTERIOR.



[Edited on 14-09-2010 by GregGsi]

BHP vaux
Jamie_Hastings1
Member
Registered: 14th Aug 08
Location: Sanquhar, Dumfries and Galloway
User status: Offline
22nd Aug 10 at 21:14   View User's Profile U2U Member Reply With Quote
Whats the reason for keeping the pot flywheel mate?
GregGsi
Premium Member

Avatar

Registered: 6th Jan 08
Location: Leigh, Wigan
User status: Offline
22nd Aug 10 at 21:18   View Garage View User's Profile U2U Member Reply With Quote
just so it will not rev up like mad
what did you run on yours pal

BHP vaux
Jamie_Hastings1
Member
Registered: 14th Aug 08
Location: Sanquhar, Dumfries and Galloway
User status: Offline
22nd Aug 10 at 21:24   View User's Profile U2U Member Reply With Quote
TTV 4.9kg. That was fitted since put on road but cant comment if there much better though lol
GregGsi
Premium Member

Avatar

Registered: 6th Jan 08
Location: Leigh, Wigan
User status: Offline
22nd Aug 10 at 21:28   View Garage View User's Profile U2U Member Reply With Quote
ok thanks my billet pot type is from ttv its a 5.5 kg flywheel pal

BHP vaux
Col004
Member
Registered: 25th Jun 03
User status: Offline
22nd Aug 10 at 21:57   View User's Profile U2U Member Reply With Quote
well done G man... Its about time you got some piccy's up so we can keep an eye on what your doing

top man
DansCorsaSXi
Organiser: Yorkshire
Premium Member

Avatar

Registered: 13th Jan 10
Location: Worksop
User status: Offline
23rd Aug 10 at 07:02   View Garage View User's Profile U2U Member Reply With Quote
Nice! Should look good once done

Star silver C20XE SXi Project thread

Smoke Grey Corsa GSi Project thread
philip2
Member
Registered: 1st Oct 06
Location: n.wales/chester
User status: Offline
23rd Aug 10 at 08:21   View User's Profile U2U Member Reply With Quote
just need possy and the others to get their threads up now if not doing a joint one.

oh if havent got rods yet, i know possy wants some as he asked this morn, let me know and ill get hold of some.
GregGsi
Premium Member

Avatar

Registered: 6th Jan 08
Location: Leigh, Wigan
User status: Offline
23rd Aug 10 at 17:04   View Garage View User's Profile U2U Member Reply With Quote
Col004 thanks pal will be seeing you soon
DansCorsaSXi thanks pal
philip2 if you get a min get pics up of my head lazzy

BHP vaux
GregGsi
Premium Member

Avatar

Registered: 6th Jan 08
Location: Leigh, Wigan
User status: Offline
23rd Aug 10 at 18:58   View Garage View User's Profile U2U Member Reply With Quote
little up date sent my let throttle body off to have it ported and polished and made bigger
it was 64 mm now its 68 with out the wedge


BHP vaux
rowland
Member
Registered: 4th May 08
Location: Greater Manchester
User status: Offline
29th Aug 10 at 21:30   View User's Profile U2U Member Reply With Quote
nail !
GregGsi
Premium Member

Avatar

Registered: 6th Jan 08
Location: Leigh, Wigan
User status: Offline
31st Aug 10 at 17:06   View Garage View User's Profile U2U Member Reply With Quote
thanks lazzy my jigg looks good fited to that poo car you have lol

BHP vaux
GregGsi
Premium Member

Avatar

Registered: 6th Jan 08
Location: Leigh, Wigan
User status: Offline
1st Sep 10 at 22:11   View Garage View User's Profile U2U Member Reply With Quote
well a little update i have taken the fillerneck out and pickt my t3 up






[Edited on 01-09-2010 by GregGsi]

[Edited on 01-09-2010 by GregGsi]

BHP vaux
J200RSA
Member
Registered: 23rd May 05
Location: Sheffield
User status: Offline
1st Sep 10 at 23:04   View User's Profile U2U Member Reply With Quote
whats the reason for taking the filler neck out?
GregGsi
Premium Member

Avatar

Registered: 6th Jan 08
Location: Leigh, Wigan
User status: Offline
2nd Sep 10 at 16:32   View Garage View User's Profile U2U Member Reply With Quote
J200RSA just dont like were it was so thort why i was doing all the car mayas well do it how i like it to look pal

BHP vaux
GregGsi
Premium Member

Avatar

Registered: 6th Jan 08
Location: Leigh, Wigan
User status: Offline
5th Sep 10 at 20:58   View Garage View User's Profile U2U Member Reply With Quote
well big update thanks to rowland,his dad and stevboyslim
for my let bits
well my block was bored to 86.5 when i got it then chris astley had it acid dipped then homed and decked.and last month i took it down to stevboyslim to have oil jets fitted and pistons machined down to make lower comp. Heres some pictures of new bits i picked up















[Edited on 05-09-2010 by GregGsi]

[Edited on 05-09-2010 by GregGsi]

BHP vaux
GregGsi
Premium Member

Avatar

Registered: 6th Jan 08
Location: Leigh, Wigan
User status: Offline
6th Sep 10 at 22:31   View Garage View User's Profile U2U Member Reply With Quote
off to philip2 at weekend to pick my head up and to fit all the bit to make my let back up lol

BHP vaux
stu_c
Member
Registered: 11th Dec 07
Location: Westleigh, Greater Manchester
User status: Offline
7th Sep 10 at 14:38   View User's Profile U2U Member Reply With Quote
hows the astra?
GregGsi
Premium Member

Avatar

Registered: 6th Jan 08
Location: Leigh, Wigan
User status: Offline
7th Sep 10 at 16:46   View Garage View User's Profile U2U Member Reply With Quote
for sale soon pal

BHP vaux
GregGsi
Premium Member

Avatar

Registered: 6th Jan 08
Location: Leigh, Wigan
User status: Offline
12th Sep 10 at 19:57   View Garage View User's Profile U2U Member Reply With Quote
well not much to up date but been picing my
tial 44m v band external wastegate and Wideband innovate wideband lc-1
And took all my let down to philip in bits pics up later

BHP vaux
Col004
Member
Registered: 25th Jun 03
User status: Offline
14th Sep 10 at 06:59   View User's Profile U2U Member Reply With Quote
Well it looks like you make faster progress than me buddy
BeArDy
Member
Registered: 7th Aug 00
Location: Manchester
User status: Offline
14th Sep 10 at 10:02   View User's Profile U2U Member Reply With Quote
He would have some Siemans 660cc injectors if he would not be so tight
philip2
Member
Registered: 1st Oct 06
Location: n.wales/chester
User status: Offline
14th Sep 10 at 11:05   View User's Profile U2U Member Reply With Quote
pics of bottom end being built up:

[img][/img]

[img][/img]

[img][/img]

[img][/img]

[img][/img]

[img][/img]

[img][/img]

[img][/img]
