Scotty C
Member
Registered: 6th Nov 05
Location: Kidderminster Drives: 1.6 16v Sport
User status: Offline
|
Looks the same as my C16XE head -
|
Vaux Lad
Member
Registered: 15th Dec 04
Location: Stoke-on-Trent
User status: Offline
|
But that looks the same as my x16 head/\
Lmao
|
Scotty C
Member
Registered: 6th Nov 05
Location: Kidderminster Drives: 1.6 16v Sport
User status: Offline
|
The X16XE head has bits of casting goin in between the spark plug holes.
|
Vaux Lad
Member
Registered: 15th Dec 04
Location: Stoke-on-Trent
User status: Offline
|
Indeed it does, just looked at pics of mine.
Never noticed that before.
|
Scotty C
Member
Registered: 6th Nov 05
Location: Kidderminster Drives: 1.6 16v Sport
User status: Offline
|
WTF are they? they must serve some purpose.
Back to the original question, It MUST be the C16XE head then.
|
Vaux Lad
Member
Registered: 15th Dec 04
Location: Stoke-on-Trent
User status: Offline
|
Yup it must be c16xe.
As x14/x16xel ports are different.
And X16xe has casts near the plug holes.
Looking at them, they dont seem to serve any purpose, there just there,lol.
Heres my x16 head, you can clearly see the round casts:-
[Edited on 13-05-2007 by Vaux Lad]
|
Robin
Premium Member
Registered: 7th Jan 04
Location: Northants Drives: Clio 182 Cup
User status: Offline
|
I would have probably spotted that if I had a picture of the top of my head
What inlet have you got on there Vaux Lad?
|
Vaux Lad
Member
Registered: 15th Dec 04
Location: Stoke-on-Trent
User status: Offline
|
Just a std one atm Robin, albeit cleaned, and in gloss black  lol
Hoping fit some form of mantzel box, or carbs/bike tb's at some point tho.
|
Robin
Premium Member
Registered: 7th Jan 04
Location: Northants Drives: Clio 182 Cup
User status: Offline
|
Thought it was, just wondered because of the colour
|
gavin18787
Premium Member
Registered: 22nd Feb 05
Location: Basildon, Essex
User status: Offline
|
Went to warren.g's today and have confirmed that its not the right head
Its an X14xe / X16XEL as the inlet ports are smaller
Drives supercharged Tec with torque
|
Dave A
USER UNDER INVESTIGATION - DO NOT TRADE
Registered: 10th Dec 03
Location: County Durham
User status: Offline
|
ive seen x14/x16/c16 with and without those round castings in the head.
I have a C16xe head thats been polished and ported to a high standard if you want it Gav..... £200. has been skimmed and pressure tested recently as well as new valves fitted and stem seals. think the followers are new as well, was going to keep it for my new engine but have changed my plans.
|
Warren G
Member
Registered: 14th May 06
Location: Kent
User status: Offline
|
quote:
Originally posted by Monster
quote:
Originally posted by warren.g
5 dots - 1600 head
3 dots - 1400 head
inlet ports - 48mm for 1400 head
inlet ports - 54mm for 1600 head
as we found out today gavin!
Robin's 1400 head has 5 dots.
had 4 cylinder heads in front of me today..

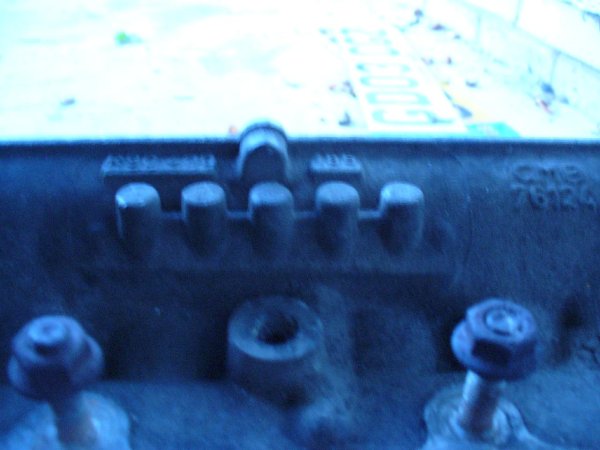

the 5 'dots' you can see in the picture works out what head you have, the heads with 5 dots extruded where my c16xe head and gavins x16xe head
and the ones with 3 dots extuded (like in the picture, but not visable due to angle of picture) were my x16xel cylinder head (aka a 1400 one) and the new head gavin had, which tuned out to be a 1400 one
ports sizes were measured - 1400 head 48mm across inlet ports, 1600 head 54mm across inlet ports
and exhasut ports all the same
|
Robin
Premium Member
Registered: 7th Jan 04
Location: Northants Drives: Clio 182 Cup
User status: Offline
|
So, my X14XE head should have 3 sticky out dots and 2 flush ones?
|
Robin
Premium Member
Registered: 7th Jan 04
Location: Northants Drives: Clio 182 Cup
User status: Offline
|
Which it doesn't -
and it is 100% a 1.4 head.
|
Warren G
Member
Registered: 14th May 06
Location: Kent
User status: Offline
|
as far as i understand - yes
if not im confused
what were the port sizes?
but you can see my understanding tho........
[Edited on 13-05-2007 by warren.g]
|
Robin
Premium Member
Registered: 7th Jan 04
Location: Northants Drives: Clio 182 Cup
User status: Offline
|
I can't measure the port sizes Warren, it's a ported head
I don't think there's an actual way to tell by looking, unless you measure the ports TBH.
|
Warren G
Member
Registered: 14th May 06
Location: Kent
User status: Offline
|
do vauxhall even no........
seems no one can actualy tell by visualy looking
|
Robin
Premium Member
Registered: 7th Jan 04
Location: Northants Drives: Clio 182 Cup
User status: Offline
|
46mm exhaust, 55mm inlet on mine, I measured it anyway
[Edited on 13-05-2007 by Robin]
|
gavin18787
Premium Member
Registered: 22nd Feb 05
Location: Basildon, Essex
User status: Offline
|
surely the dots must be there for some reason
Drives supercharged Tec with torque
|
Dave A
USER UNDER INVESTIGATION - DO NOT TRADE
Registered: 10th Dec 03
Location: County Durham
User status: Offline
|
same dots are there on my z18xe....
|
Robin
Premium Member
Registered: 7th Jan 04
Location: Northants Drives: Clio 182 Cup
User status: Offline
|
I think there needs to be a dot survey conducted.
|
gavin18787
Premium Member
Registered: 22nd Feb 05
Location: Basildon, Essex
User status: Offline
|
indeed, who knows an insider at vaux
Drives supercharged Tec with torque
|
Warren G
Member
Registered: 14th May 06
Location: Kent
User status: Offline
|
okay
DOTS
x14xe x16xe c16xe
3 5 5
3
5
do continue
|
Robin
Premium Member
Registered: 7th Jan 04
Location: Northants Drives: Clio 182 Cup
User status: Offline
|
quote:
Originally posted by warren.g
okay
DOTS
code:
x14xe x16xe c16xe
3 5 5
3
5
do continue
[Edited on 13-05-2007 by Robin]
|
gavin18787
Premium Member
Registered: 22nd Feb 05
Location: Basildon, Essex
User status: Offline
|
Right i think I will get the one from dave a
Are we all in agreement that the C16xe head will be fullly compatible with the X16xe engine i have
