Author ECU - help needed ie Mr Dave A
Dave A
USER UNDER INVESTIGATION - DO NOT TRADE

Registered: 10th Dec 03
Location: County Durham
User status: Offline
8th Apr 07 at 21:04   View User's Profile U2U Member Reply With Quote
a pic like this:
Warren G
Member
Registered: 14th May 06
Location: Kent
User status: Offline
9th Apr 07 at 19:32   View User's Profile U2U Member Reply With Quote




the bown/grey wire in on connection 11, like TIS says

if you don't no where it should go, il have too look on the wiring diagrams at work coz they only list them from 1997 on TIS
Warren G
Member
Registered: 14th May 06
Location: Kent
User status: Offline
10th Apr 07 at 13:59   View User's Profile U2U Member Reply With Quote
up
andyc1234
Member
Registered: 7th Nov 06
Location: Lancashire
User status: Offline
10th Apr 07 at 17:25   View User's Profile U2U Member Reply With Quote
ive got a sri. if you want i can take a pic of the wiring if that would help you out
Dave A
USER UNDER INVESTIGATION - DO NOT TRADE

Registered: 10th Dec 03
Location: County Durham
User status: Offline
10th Apr 07 at 17:52   View User's Profile U2U Member Reply With Quote
quote:
Originally posted by warren.g

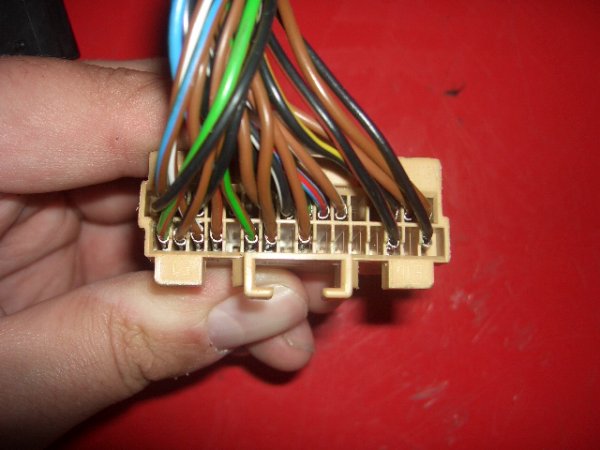

get a pic that is in focus and remove the pin cover, like in my pic.
Warren G
Member
Registered: 14th May 06
Location: Kent
User status: Offline
10th Apr 07 at 18:01   View User's Profile U2U Member Reply With Quote
will have to get o proper camera then! will do tomorrow then
Warren G
Member
Registered: 14th May 06
Location: Kent
User status: Offline
12th Apr 07 at 18:59   View User's Profile U2U Member Reply With Quote

Dave A
USER UNDER INVESTIGATION - DO NOT TRADE

Registered: 10th Dec 03
Location: County Durham
User status: Offline
12th Apr 07 at 21:05   View User's Profile U2U Member Reply With Quote
switch round the wires in positions 6 and 11
Warren G
Member
Registered: 14th May 06
Location: Kent
User status: Offline
12th Apr 07 at 21:07   View User's Profile U2U Member Reply With Quote
okay will do that! what are the wires im swapping tho

ones knock sensor, and the other one is....
Dave A
USER UNDER INVESTIGATION - DO NOT TRADE

Registered: 10th Dec 03
Location: County Durham
User status: Offline
12th Apr 07 at 21:10   View User's Profile U2U Member Reply With Quote
both knock sensor wires, early sensors have only 1 wire, later ones have 2

the early ecu you are using only requires the signal from the screed wire so swopping them round will do the same job.

Warren G
Member
Registered: 14th May 06
Location: Kent
User status: Offline
12th Apr 07 at 21:14   View User's Profile U2U Member Reply With Quote
are the pins easy to knock out? or shell i make some connectors?

which do you recomend
Dave A
USER UNDER INVESTIGATION - DO NOT TRADE

Registered: 10th Dec 03
Location: County Durham
User status: Offline
12th Apr 07 at 21:23   View User's Profile U2U Member Reply With Quote
they unclip with a small screwdriver.
Warren G
Member
Registered: 14th May 06
Location: Kent
User status: Offline
13th Apr 07 at 16:25   View User's Profile U2U Member Reply With Quote
didnt work, made it missfire (number 6 is for injector 4!!!)

unless you no which one it is, because i cant see on wiring diagrams, i could undo the knock sensor and swap the pins over there if all else fails but would rather change it at the ecu end
Dave A
USER UNDER INVESTIGATION - DO NOT TRADE

Registered: 10th Dec 03
Location: County Durham
User status: Offline
14th Apr 07 at 09:22   View User's Profile U2U Member Reply With Quote
odd, check how many wires you have on your knock sensor.
Dave A
USER UNDER INVESTIGATION - DO NOT TRADE

Registered: 10th Dec 03
Location: County Durham
User status: Offline
14th Apr 07 at 09:22   View User's Profile U2U Member Reply With Quote
should be 2.....
Warren G
Member
Registered: 14th May 06
Location: Kent
User status: Offline
14th Apr 07 at 16:29   View User's Profile U2U Member Reply With Quote
its two, because iv taken it apart before

but number 6 is for the 4th injector, so cant see why swaping that around would do anything

even tryed swapping 7 and 11, but still same fault

any ideas?
Warren G
Member
Registered: 14th May 06
Location: Kent
User status: Offline
15th Apr 07 at 09:38   View User's Profile U2U Member Reply With Quote
up
Warren G
Member
Registered: 14th May 06
Location: Kent
User status: Offline
15th Apr 07 at 20:48   View User's Profile U2U Member Reply With Quote

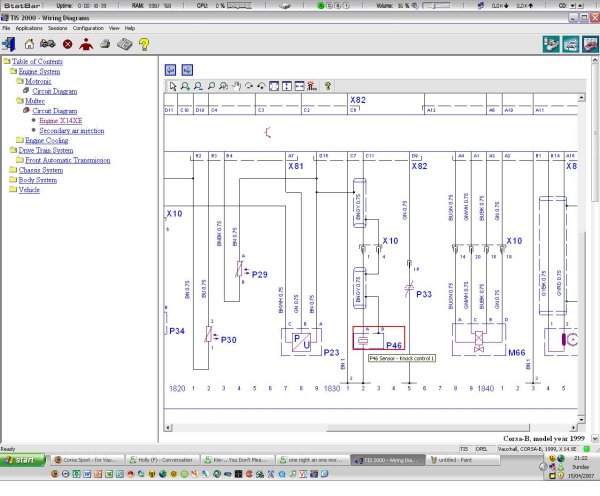

P46 - knock sensor

X10 - is the blue plug which is next to the alterntator, has all injector wires too

the knock sensor has two wires (A/B)

A is connector C11 on the ECU loom plug


whats different on the single wire knock sensor loom/ecu????
ShEp
Member
Registered: 9th Aug 05
Location: Dingwall, Highland
User status: Offline
16th Apr 07 at 10:48   View User's Profile U2U Member Reply With Quote
give up and get the correct ecu back in,

sell the sri one and buy a superchip


is it really worth it? all this hassle is somewhat unecessary
Dave A
USER UNDER INVESTIGATION - DO NOT TRADE

Registered: 10th Dec 03
Location: County Durham
User status: Offline
16th Apr 07 at 10:57   View User's Profile U2U Member Reply With Quote
do this:
Warren G
Member
Registered: 14th May 06
Location: Kent
User status: Offline
16th Apr 07 at 16:12   View User's Profile U2U Member Reply With Quote
c11 to c1 then! will do tomorrow
Warren G
Member
Registered: 14th May 06
Location: Kent
User status: Offline
16th Apr 07 at 16:14   View User's Profile U2U Member Reply With Quote
quote:
Originally posted by ShEp
give up and get the correct ecu back in,

sell the sri one and buy a superchip


is it really worth it? all this hassle is somewhat unecessary


the sri has an superchip fitted to it. and it will cost £200-£300 to fit one to mine, compared to £55 iv spent

and what hassel, its not hard to move pins about, just got to no where they go
Dave A
USER UNDER INVESTIGATION - DO NOT TRADE

Registered: 10th Dec 03
Location: County Durham
User status: Offline
16th Apr 07 at 16:19   View User's Profile U2U Member Reply With Quote
1m 99.9% sure that should solve it mate, got confused when I said pin 6 (or whatever I said was the injector one) as the wire looked red/brown but after investigating it should be pin 1.
Dave A
USER UNDER INVESTIGATION - DO NOT TRADE

Registered: 10th Dec 03
Location: County Durham
User status: Offline
16th Apr 07 at 16:19   View User's Profile U2U Member Reply With Quote
get a fire extinguisher ready though......
Dave A
USER UNDER INVESTIGATION - DO NOT TRADE

Registered: 10th Dec 03
Location: County Durham
User status: Offline
16th Apr 07 at 19:41   View User's Profile U2U Member Reply With Quote
did you try it?
