Im in the process of planning a patio for my garden. I need some advice on laying them
I have 15-17sqm to lay, depending on which design i go for.
I will be using 500mm x 500mm x 50mm Granite slabs (which im getting for a serious bargain price of £17 sqm)
What the best method to lay them? My mate who has quoted me to lay them has said he probably wouldnt use a hardcore base, and just lay directly on sand/cement dry base, as the ground is hard as hell here.
But what ive read online is to lay a 100mm type 1 base, then sand/cement dry mix base.
Whats my best option ?
[Edited on 24-05-2011 by Dan]
[Edited on 04-06-2011 by Dan]
[Edited on 21-06-2011 by Dan]
Adult GiftsClick here to vist us
|
RichR
Premium Member
Registered: 17th Oct 01
Location: Waterhouses, Staffordshire
User status: Offline
|
I would have thought any decent job would need a good hardcore base. The last thing you want to have to do is lift them if they start sagging - That said, you're not putting cars on it etc so maybe it would be ok.
|
Mad Moe
Member
Registered: 14th Jun 01
Location: Northumberland
User status: Offline
|
quote:
Originally posted by Dan
But what ive read online is to lay a 100mm type 1 base, then sand/cement dry mix base.
This for a proper job irrespective of ground conditions
|
Dan
Premium Member
Registered: 22nd Apr 02
Location: Gorleston on Sea, Norfolk
User status: Offline
|
Thing is, i will probably lift this patio in 2 or 3 years, so i can add a conservatory.
hmm
Adult GiftsClick here to vist us
|
RichR
Premium Member
Registered: 17th Oct 01
Location: Waterhouses, Staffordshire
User status: Offline
|
in which case what's the point? Could you not make do with a gravel patio or similar for the time being; lay a weed blanket and over fill with gravel
|
Colin
Member
Registered: 4th Apr 02
User status: Offline
|
I just put mine on sand/cement mix on top of compacted soil. Think it will be ok for as long as I live here anyway.
|
Dan
Premium Member
Registered: 22nd Apr 02
Location: Gorleston on Sea, Norfolk
User status: Offline
|
I'll just move the patio further up the garden when I do the conservatory, so there is every point. The conservatory may be Alot further away.
That's what I'm thinking Colin. Any good step by step guides?
Adult GiftsClick here to vist us
|
Colin
Member
Registered: 4th Apr 02
User status: Offline
|
Not really
I built a frame from timber sleepers (more to take up the gradient) then hired a whacker plate, compacted the soil, then compacted sharp sand on top then laid the patio slabs.
|
Dan
Premium Member
Registered: 22nd Apr 02
Location: Gorleston on Sea, Norfolk
User status: Offline
|
Is a frame a must? Although having said that, i may use some granite 6 x 6 in edging to create a step up into the garden.
Is just going out and digging it up to how i want it a bad move without much more planning
Adult GiftsClick here to vist us
|
Colin
Member
Registered: 4th Apr 02
User status: Offline
|
Nah not at all, like I said it was mainly to provide retaining wall / take the gradient away from the drop at the rear.
Does look good though.
No pic's of mine but I was inspired by Antnee's - http://www.c20xe.co.uk/board/viewthread.php?tid=522848
|
Colin
Member
Registered: 4th Apr 02
User status: Offline
|
^Thats a much better job than mine though....I didnt have 4 guys to help so I got what I did!!
|
Dan
Premium Member
Registered: 22nd Apr 02
Location: Gorleston on Sea, Norfolk
User status: Offline
|
Yea i love that garden, very smart. Way out of my budget.
Adult GiftsClick here to vist us
|
Fad
Member
Registered: 1st Feb 01
Location: Dartford Kent Drives: 330cd
User status: Offline
|
Just make sure that the patio is at least 150mm below the dpc.
|
whitter45
Member
Registered: 15th Nov 02
Location: Norton
User status: Offline
|
need good hardcore base
And to have a proper job done by somebody it will be costly
|
Dan
Premium Member
Registered: 22nd Apr 02
Location: Gorleston on Sea, Norfolk
User status: Offline
|
Finally about to start this.
Changed from granite to riven bradstone slabs. Which are 3 different sizes.
Going out this morning to start churning up the soil, ready to shovel out. I dont have room for a skip as it would leave no space for car anywhere near. So going to use 1 tonne bags and get them collected when the sharp sand gets delivered.
Not sure on how to do the base yet. My builder mate is telling me cement mix, which is moist, not wet or dry. Then lay that directly onto soil at 40mm thick and lay slabs onto this.
Im thinking more of going down the dry mix screeded and laid onto this.
Ill research that more as i go. Pics to follow in due coarse.
Adult GiftsClick here to vist us
|
Dan
Premium Member
Registered: 22nd Apr 02
Location: Gorleston on Sea, Norfolk
User status: Offline
|
So the great patio project begins...
Never done it before, gotta learn some way, so gonna give it a go.

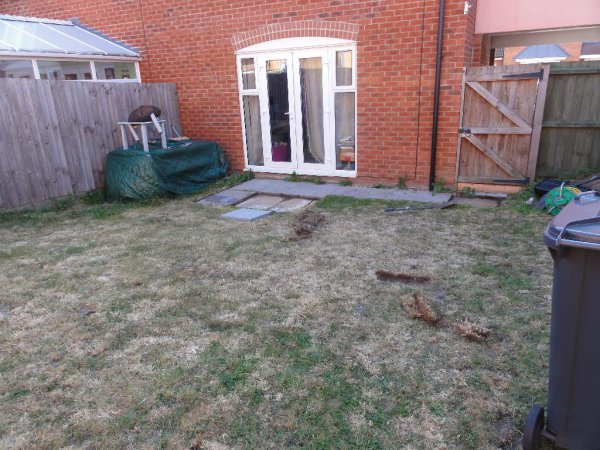

Heres the starting point
Set out a little while ago, and have dug out a perimeter to give me something to work to. The garden is on a slight uphill gradient, so its going to need a fair amount of digging at the edge.
Heres the perimeter. It will be 5.4m x 3.16m.
Im planning on using some new sleepers to give a step up from the patio to the rest of the garden.
Perimeter
Adult GiftsClick here to vist us
|
Dan
Premium Member
Registered: 22nd Apr 02
Location: Gorleston on Sea, Norfolk
User status: Offline
|
Disaster one has already struck!
Bloody paving supplier told me the packs i have had a laying pattern that makes 1.8m x 3.15m.
When infact, they are 1.98m x 2.75m
So the boundary i dug to long and not wide enough. Not to much of an issue, but just means more excavation to the sides, and ill have to fill in the bit thats to long.
Just sat waiting fo a skip to arrive now. Itching to get on!
Adult GiftsClick here to vist us
|
VrsTurbo
Premium Member
Registered: 8th Jun 10
User status: Offline
|
i would of made it up the fence post of the garden gate
|
Dan
Premium Member
Registered: 22nd Apr 02
Location: Gorleston on Sea, Norfolk
User status: Offline
|
Yea that's what I wanted butthe design wasn't wide enough.
Luckily the new design is wider. So it's now covering the whole gate.
Adult GiftsClick here to vist us
|
Russ
Member
Registered: 14th Mar 04
Location: Armchair
User status: Offline
|
bear in mind drainage away from the property. are you having any gravel between the slabs and the wall?
|
Dan
Premium Member
Registered: 22nd Apr 02
Location: Gorleston on Sea, Norfolk
User status: Offline
|
Yea, 100mm of stone between the house wall.
Going to slope the patio away from the house on a 1:60 slope.
Adult GiftsClick here to vist us
|
Dan
Premium Member
Registered: 22nd Apr 02
Location: Gorleston on Sea, Norfolk
User status: Offline
|
Fuck me it's hard working digging out. I have about a meter by 2 meters left to dig out. It's over a foot down at the garden end. I've just about filled a 2yard skip. Pics to follow
Adult GiftsClick here to vist us
|
Ben G
Member
Registered: 12th Jan 07
Location: Essex
User status: Offline
|
i feel your pain. been digging out some dead grass patches in my garden and filled 2 recycling bins full of grass and mud and my back is killing.
|
Dan
Premium Member
Registered: 22nd Apr 02
Location: Gorleston on Sea, Norfolk
User status: Offline
|
2 Recycling bins and your killing! Thats not much! i though i was in bad shape

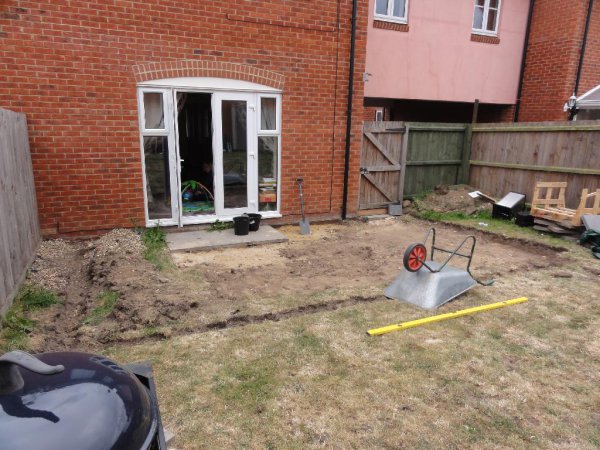

Heres the latest stage. you can see the original perimeter i cut while awaiting the skip, and the new area.
Going to add gravel at the ends/sides of the patio 100mm wide, then the sleepers, then another 100mm gravel at the top of the sleepers, to allow easier grass cutting.
Adult GiftsClick here to vist us
|
Jake
Member
Registered: 24th Jan 05
User status: Offline
|
have only read the first post but use sharp sand, not building sand
|
